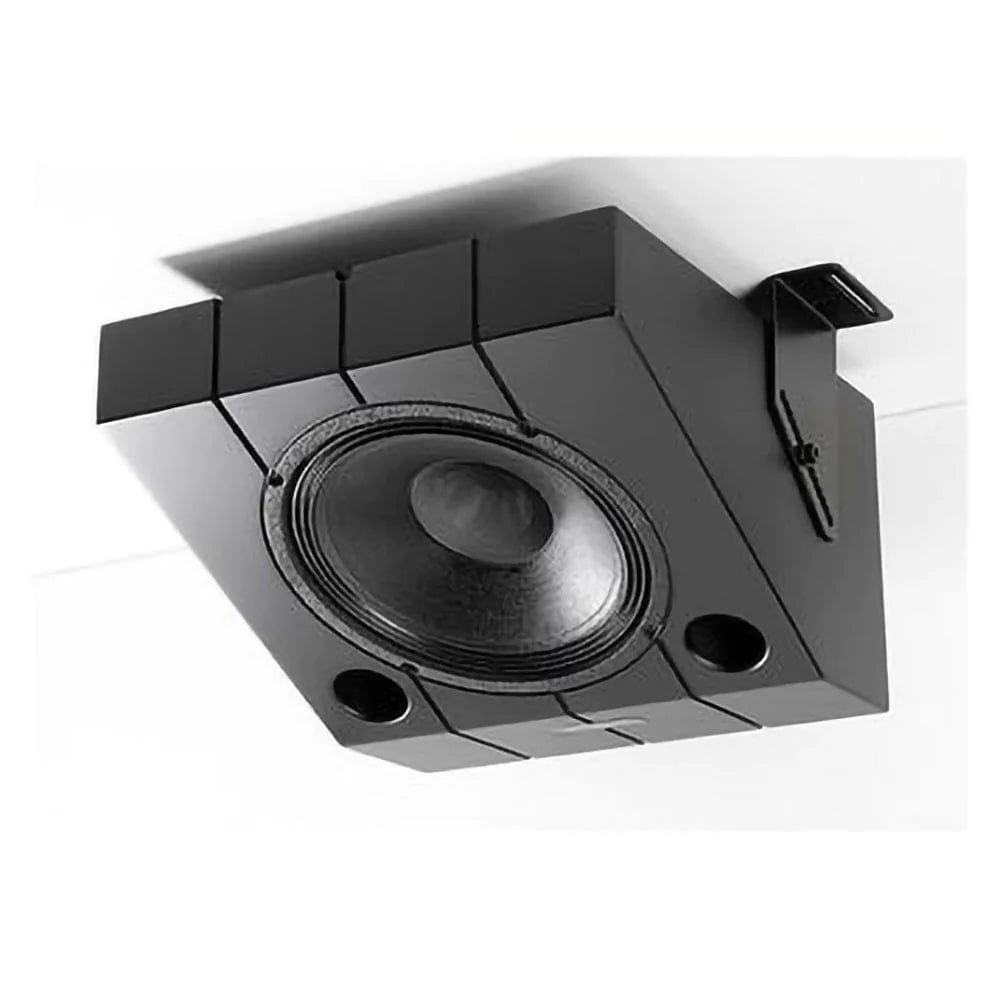

Ascendo The10 ASC-10PW 10" Coax Passive Wedge - Black
A reference-tier component supplied by specification and private consultation, matched to your room, delivered and calibrated. We'll prepare a tailored proposal for you.
A proposal covers the component, professional installation and full calibration, matched to your room and priced as a finished result, not just the box.
Overview
THE 10 PASSIVE WEDGE30
- PASSIVE
- FRONT
- SURROUND
Your entry into the fascinating world of Immersive Audio
The design objective for this model was to offer a pre-angled version of THE10 PASSIVE ON WALL that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc.
The driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area, with its 30-degree pre-angle meeting the requirements of most 3D home theatre builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localisation, immersion, and tonal balance at the main listening position while minimising localisation shifts for side seats.
THE10 PASSIVE WEDGE 30 is an enormously dynamic and powerful speaker. Its high efficiency and high-power handling allow it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.
Specifications
|
Speaker type |
Time coherent 10" coax point-source |
|
Principle |
Vented |
|
Passive | Active |
Passive |
|
SPL |
Calculated data |
|
Frequency range |
Calculated data |
|
Efficiency |
98 dB / 1W/m |
|
Power handling |
500 W |
|
Impedance |
8 Ω |
|
Woofer |
10" woofer |
|
Tweeter |
1" Compression driver |
|
Directivity horizontal x vertical in Deg° |
85° x 85° |
|
Input terminal |
One 4-conductor Phoenix 12 AWG (3,3 mm²) push on binding post |
|
Enclousure |
MDF |
|
Width |
14,7 " | 360 mm vertical |
|
Hight |
15,04 " | 382 mm vertical |
|
Depth (without grille) |
8,62 " | 219 mm vertical |
|
Weight |
28,66 lbs | 13 kg |
|
Finish |
Matte black |
|
Mounting |
Metal wall or ceiling mounting brackets that allows to angle the speaker further in two axes + 8 wall mount brackets, which allow to hang the speaker in multiple ways on the wall + VESA 200 x 100 mounting points |
The THE10 PASSIVE WEDGE 30 is supplied with a front cover as standard
Technical modifications subject to change without further notice
