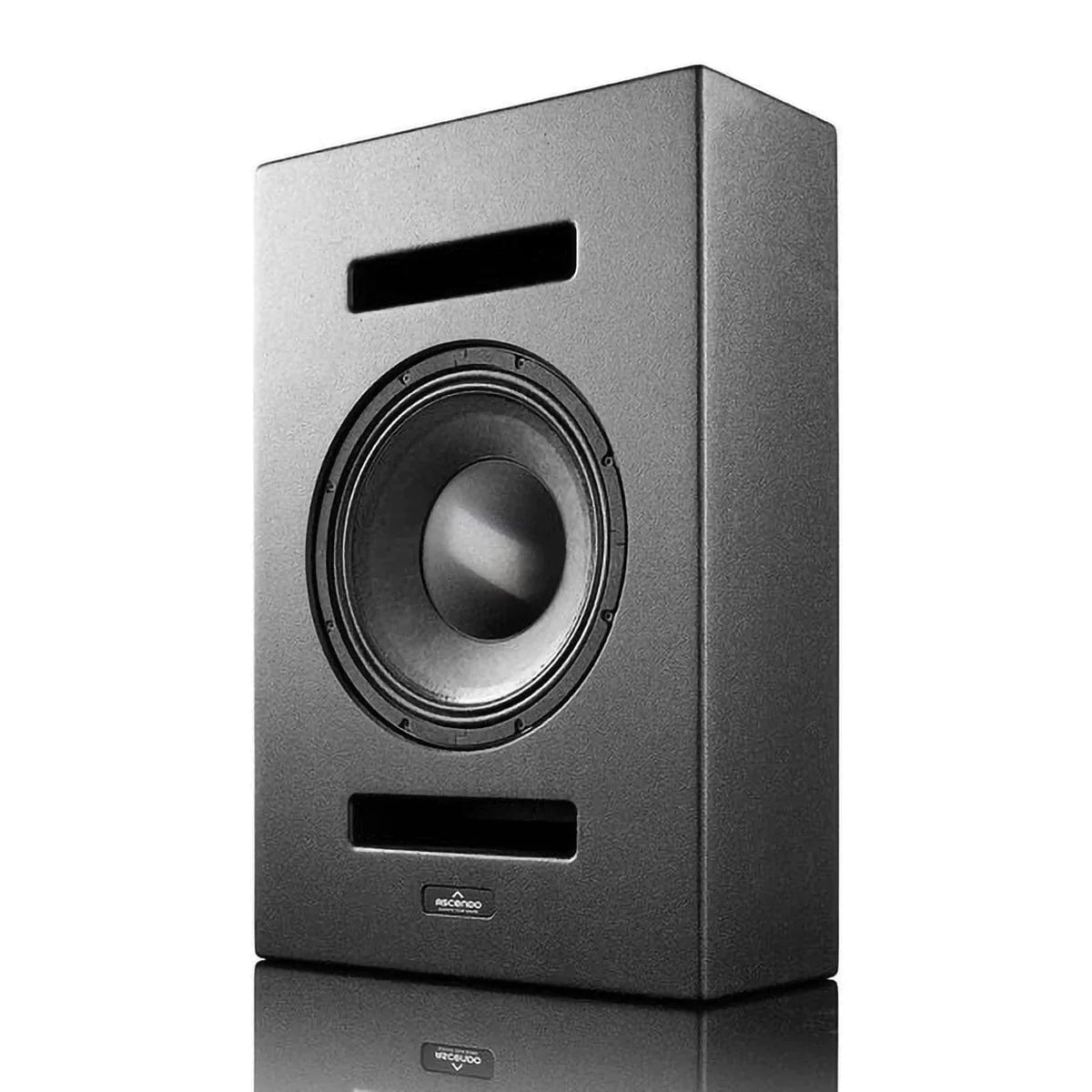

Ascendo The12 ASC-12PP 12" Coax PRO Passive On Wall Speaker - Black
A reference-tier component supplied by specification and private consultation, matched to your room, delivered and calibrated. We'll prepare a tailored proposal for you.
A proposal covers the component, professional installation and full calibration, matched to your room and priced as a finished result, not just the box.
Overview
THE 12 PRO PASSIVE ON WALL
The12 PRO PASSIVE easily outshines even the best monitor speakers available on the market. Our largest passive cinema monitor lets signal impulses veritably explode by at the same time drawing such fine detail and subtle nuances into the sonic image, that not a single bit of information gets lost along the way. This is time-coherent rendering of all acoustic events at the highest level. Its extremely high efficiency makes it reach incredible volume levels and obtain an impressive cinema sound even with lower amplifier power.
The combination of 12-inch mid-woofer and the exclusive, centrally arranged compression tweeter allows for a time-coherent and phase-accurate cinema loudspeaker a cut above the best. The highly solid enclosure, elaborately conceived in the light of over 20 years of speaker design experience, ensures extraordinary stable conditions to make parasitic vibrations a thing of the past.
Combined with our Reference subwoofers you will experience unprecedented spheres of sound.
The12 PRO PASSIVE – Impressive sound even with very low amplifier power
Specifications
|
Speaker type |
Time coherent 12" point-Source |
|
Enclosure type |
Vented |
|
Passive / Active |
Passive |
|
SPL |
127 dB cont. / 130 dB peak |
|
Frequency Range |
75 Hz to 21 kHz |
|
Efficiency |
97 dB / 1W/m |
|
Power Handling |
900W |
|
Impedance |
8 Ω |
|
Woofer |
12", 300mm |
|
Tweeter |
1.4" (Throat) compression driver |
|
Directivity Horizontal x Vertical in Deg° |
85° x 85° |
|
Input Terrminal |
Neutrik Speakon |
|
Enclosure |
Internally braced birch ply |
|
Width |
17,48" / 444 mm |
|
Height |
26,3" / 668 mm |
|
Depth With Plug |
7,87" / 200 mm |
|
Depth grill |
0,39" / 10 mm |
|
Weight |
49,60 lbs / 22,5 kg |
|
Finish |
Structural paint black |
|
Custom colour options |
Genuine piano lacquer (12 layers): matt lacquer: colour of choice, other finishes upon request |
|
Shape customization |
Possible, upon request |
|
Mounting |
4 x wall brackets for horizontal and vertical installation, VESA 200 mounting option |
Technical modifications subject to change without further notice
Equipment is only half the science. The room is the other half.
A reference component like this only performs in an acoustically engineered, light-controlled space. Discover how Dominion designs and builds uncompromised private cinemas around elite hardware, engineered as architecture.
Discover DominionSpecifications
Indicative: a full specification is prepared for your room. Request the datasheet
