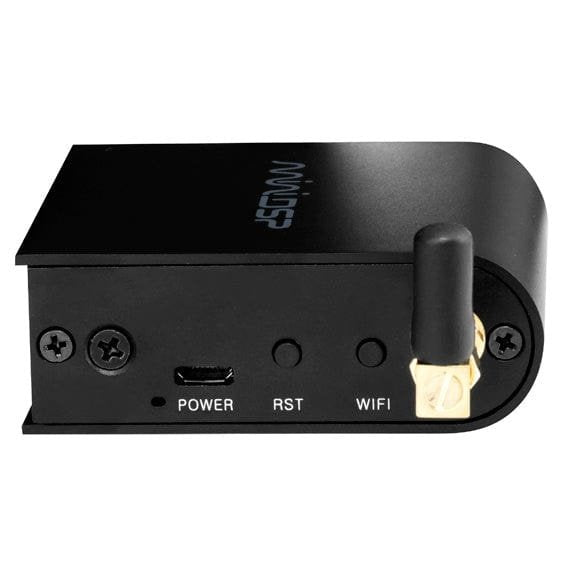

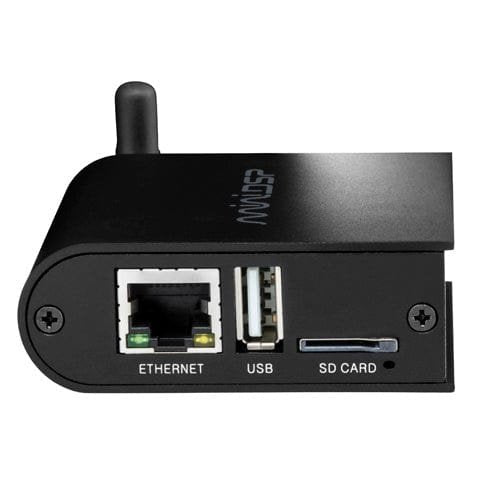

MiniDSP WI-DG Wifi/Ethernet to USB bridge For MiniDSP Devices

Note: The WIDG is only compatible with miniDSP plugins. Unfortunately it can't be used with Dirac Live software for control. Also note that only ONE WIDG can be used in a system at a time. Using multiple unit can lead to some unknown configurations.

The WI-DG is a Wifi/Ethernet to USB bridge that is pre-configured for Plug&Play discovery and control over IP networks. The Wi-DG is a tiny adaptor that interfaces to the USB port of a miniDSP hardware unit and acts as a Wi-Fi to USB bridge. Supported miniDSP plugins transparently detect and communicate with the miniDSP via the Wi-DG, enabling control and configuration over the network. Normally, the computer running the appropriate miniDSP plugin is connected directly to the miniDSP hardware unit using a USB cable. With the Wi-DG, however, the computer connects using Wi-Fi in 2 possible modes of operations: Station mode or Access Point mode. Please check out the user manual for more details.

Last but not least, all below supported platform can be controlled by miniDSP's free IOS / Android platform for basic control of Preset/Master Volume and active source.

Features

• 2.4GHz b/g/n Wifi Router (Access point/Station Mode)
• Ethernet/Wifi control of miniDSP platforms over plugin/apps

Product Downloads

• WI-DG Product Datasheet
• WI-DG User Manual

What's in the box?

• 1 x WI-DG interface
• 1 x 1m microUSB cable

Supported plugins (IP field & Self discovery)

• miniDSP 2x4HD (Available)
• SHD series (available)
• Flex (Available)
• Flex Eight (Requires fw v0.95 upgrade)
• DDRC-24 (Available)
• miniDSP 2x8/8x8/4x10/10x10 (Available)
• nanoDIGI 2x8 (Available)
• C-DSP 6x8 (Available)
• C-DSP 8x12 (Available)
• OpenDRC series (Available)
• DDRC-22 series (Future)
• DDRC-88A/D (Available)
• SHD series (Available)

Setting up WI-DG with your Android/IoS app

Check out our step by step application note to control your miniDSP unit via Android/IoS app.
