Strong Projector Mounting Bracket with Fine Adjustment in Black
Strong Projector Mounting Bracket with Fine Adjustment in Black
Strong Strong Projector Mounting Bracket  with Fine Adjustment in Black Projector Mounts
Strong Strong Projector Mounting Bracket  with Fine Adjustment in Black Projector Mounts
Strong Strong Projector Mounting Bracket with Fine Adjustment in Black Projector Mounts

Strong Projector Mounting Bracket with Fine Adjustment in Black

SM-PROJ-XL-BLK

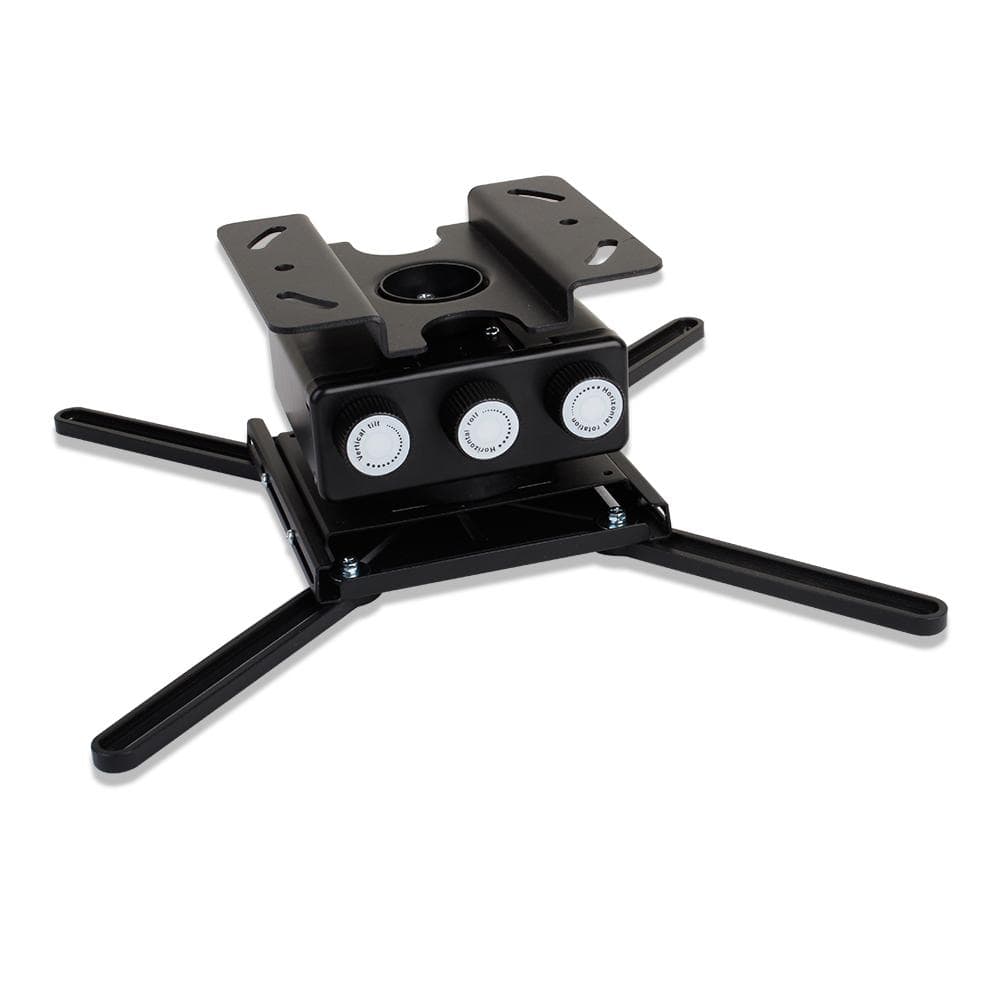

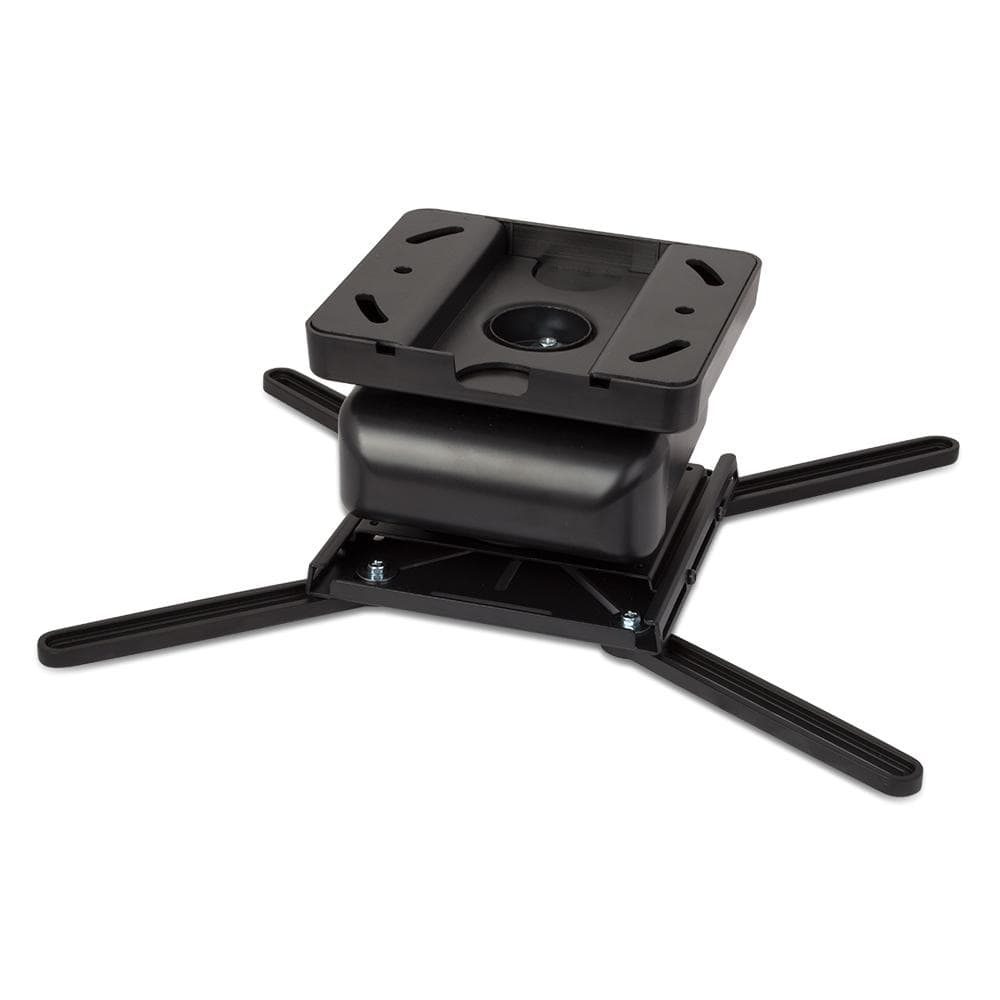

 Strong™ Universal Fine Adjust Projector Mount for Projectors up to 22kgs. (Black)

Equipped with longer mounting arms and security screw holes, this projector mount is specifically designed to handle oversized models up to 22kgs, including JVC projectors, while offering maximum installation flexibility. It features tool-less adjustments - so getting the ideal alignment is a breeze - and has a simple three-piece design that minimizes time spent at the top of the ladder. Also included is a plastic cover to keep the install looking neat and tidy.

Overview

  • Maximum Load of 22kgs
  • Fine adjustment of Pitch, Roll, Yaw
  • Optional extras for different size drop downs

Features

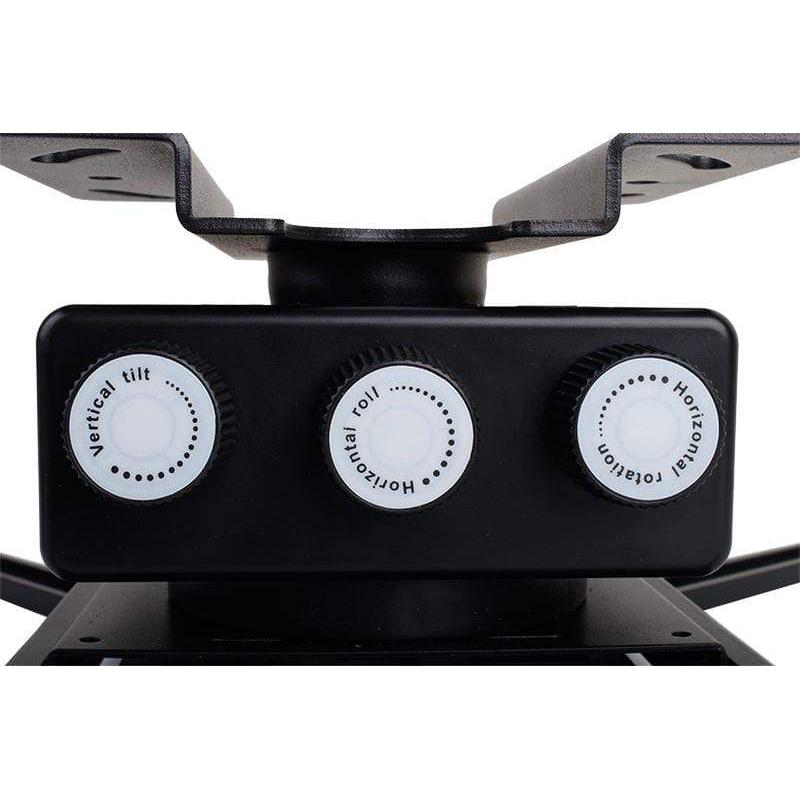

Tool-Less Adjustments
Getting a projector image to perfectly align with a screen is easier said than done. Thankfully this mount simplifies the process with easy-to-use vertical tilt, horizontal roll and yaw adjustments. Just pop off the cover and use the tool-less dials to make micro adjustments until the ideal alignment is achieved – no tightening or loosening of the screws required.

  • Maximum Mounting Flexibility
    For the most versatility in your next installation, this projector mount features longer arms that extend for up to 450mm diameter mounting. Plus it has a series of slots on the arms and the bottom plate that provide almost limitless placement options, so it’s easy to get the projector perfectly positioned. Need to install directly in concrete or ceiling drywall? Not a problem – just use the included hardware.

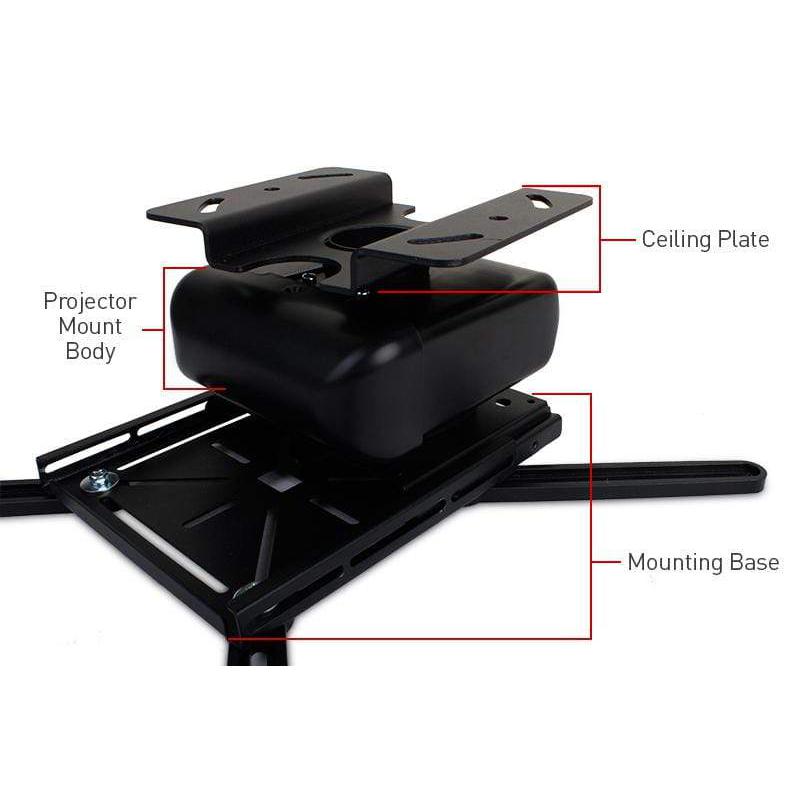

  • Easy as 1, 2, 3
    A smart three-piece design makes it easy to get this projector securely installed – without having to fumble around at the top of the ladder. The top plate attaches to the ceiling and screws into the mount assembly body, while the bottom plate (with attached projector) simply slides and locks into place. It makes installing the product – and taking down the projector for servicing – fast and easy. Now that’s what we call installer friendly!
  • Security Screws
    When it comes to projector installs, a secure attachment is key. That’s why this mount features multiple security screws for projector attachment, as well as screws on each side of the mounting base – which all help to lock things in place. Move the mount around until you get the perfect center of gravity for the projector, then tighten down the screws and you’re good to go!
  • Extension Needed?
    If you want to drop the projector off the ceiling with an extension pole, we've included a separate ceiling plate to allow for easy connection to the pipe. Also included is a plastic cover to keep the install looking neat and tidy. For specialized applications, check out our other ceiling attachment options: SM-CEILING-SCA-WH, SM-CEILING-CT-2X2-WH, SM-CEILING-CA; and SM-CEILING-TRUSS.
  • Universal Fit
    High ceiling? No problem. Equipped with standard NPT threading, this mount is compatible with any 1-1/2” NPT poles or extension devices – offering maximum flexibility for your install.

Specifications

Construction: Plastic & Steel, Black Powder Coat
Product Weight: 2.5 kgs.
Maximum Projector Mounting Dimension: 450mm (17.7") Max Hole Spread
Maximum Load (kgs.): 22kgs
Distance from the ceiling: 132mm (5.2")
Hardware Included: Yes
Fine Adjustment angle - Pitch: '+/- 5°
Fine Adjustment angle - Roll: +/- 5°
Fine Adjustment angle - Yaw: +/- 5°
