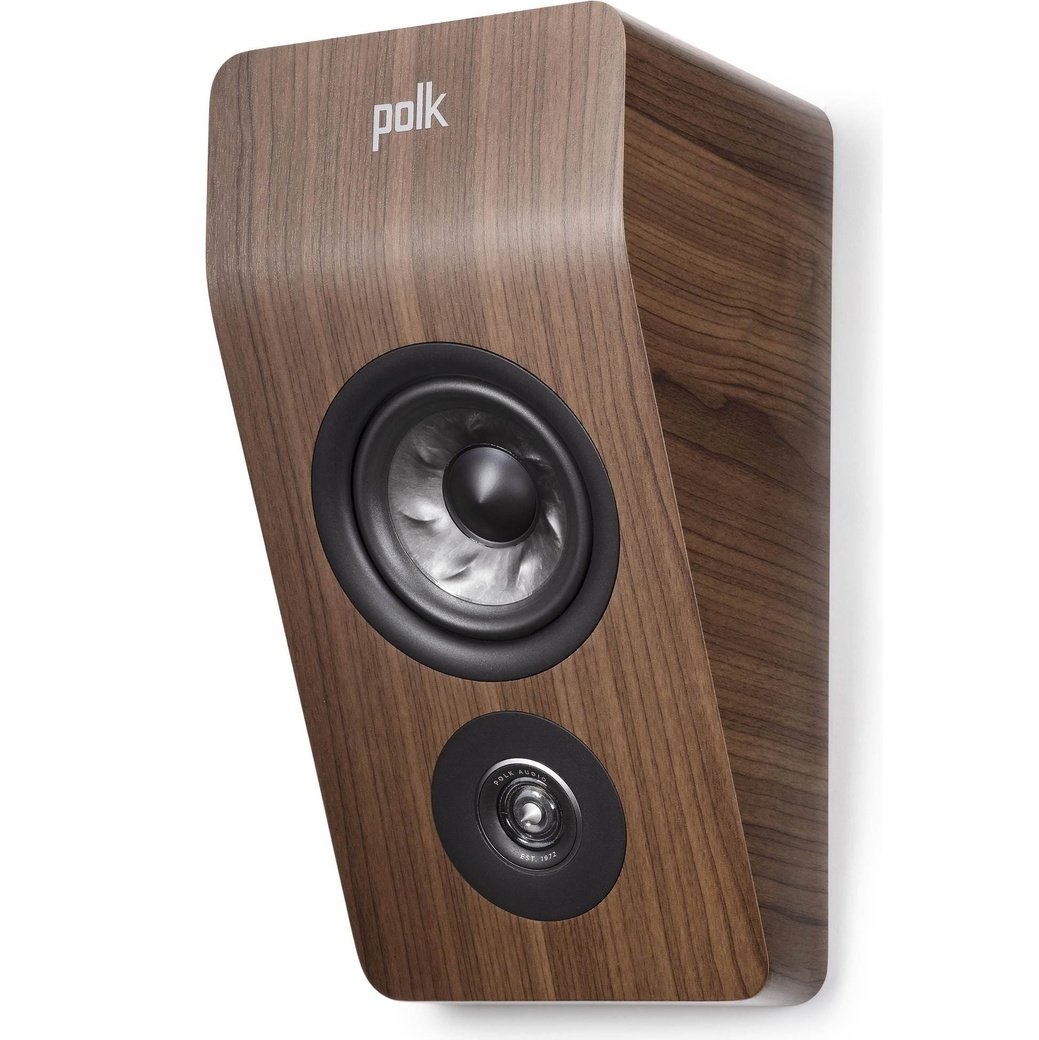

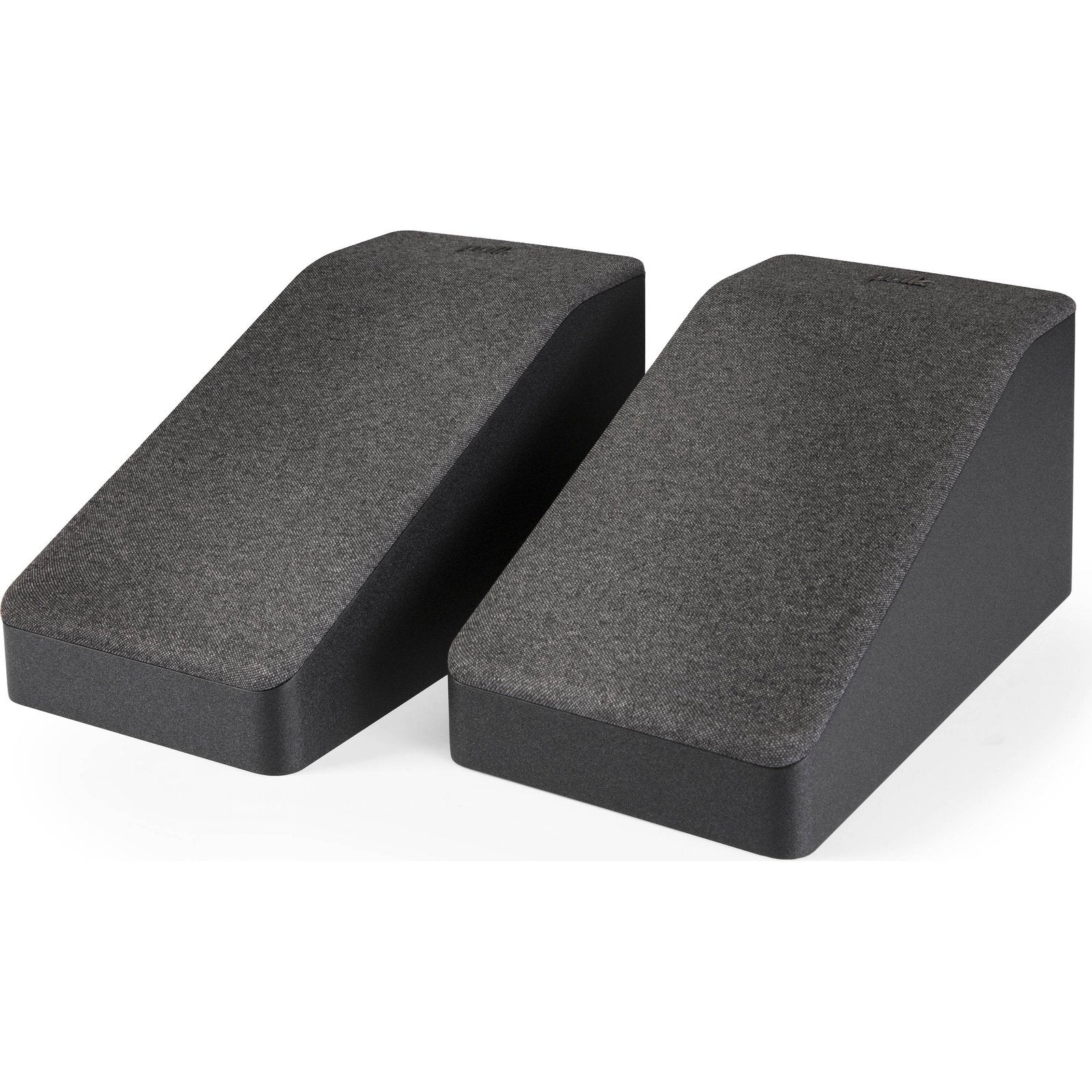

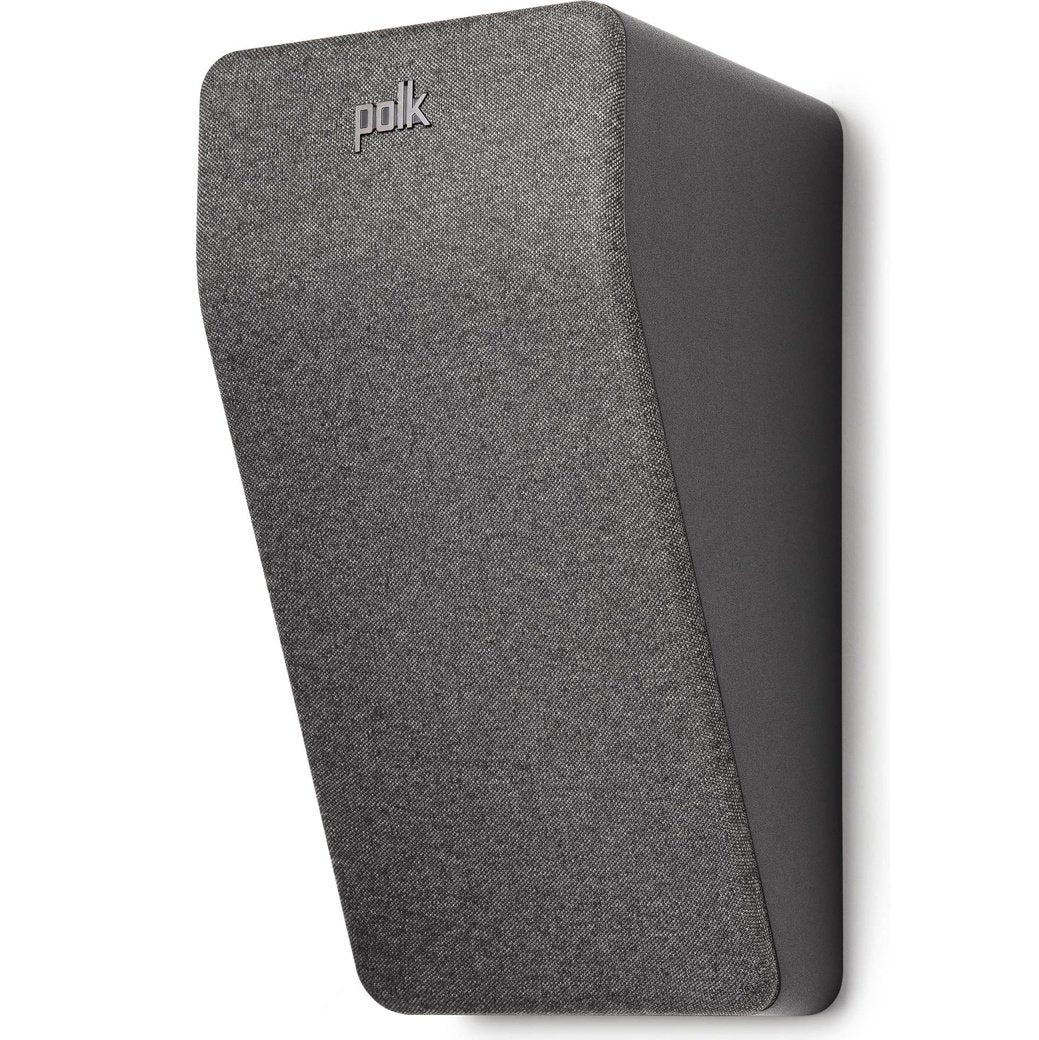

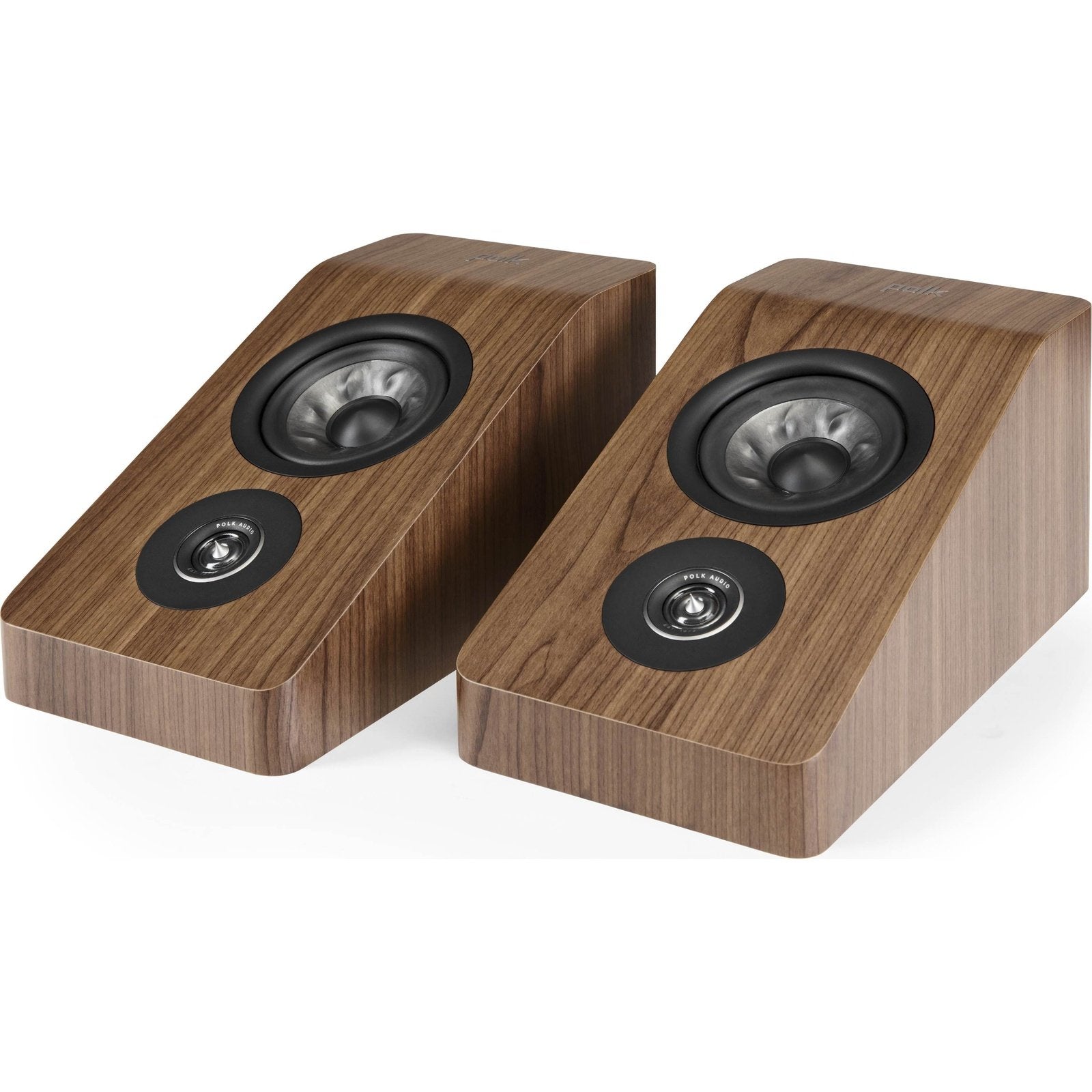

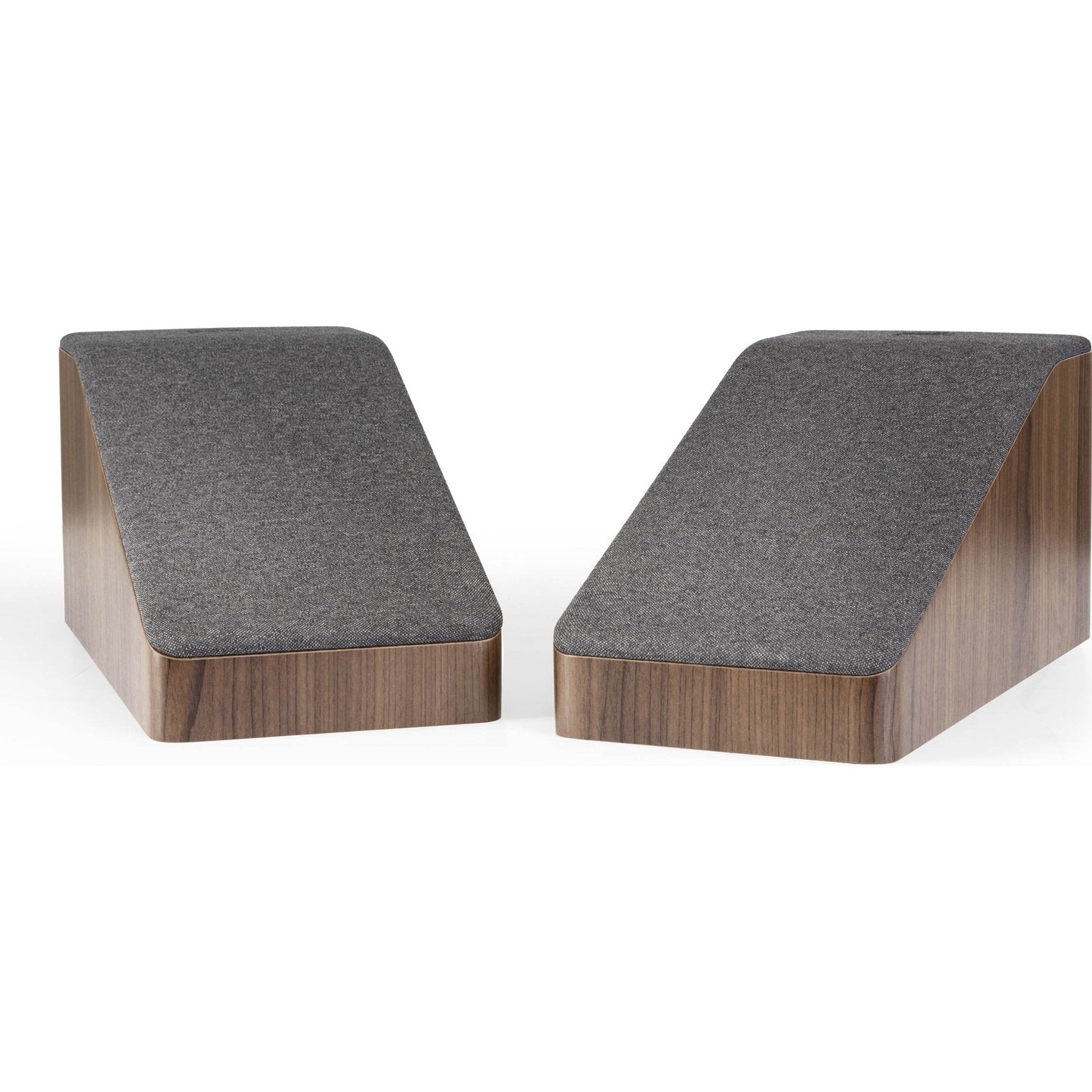

Add R900 height modules to access an IMAX-enhanced world of multidimensional sound. Its unique design means that it can sit atop other Reserve Series speakers or be mounted to the wall, unlocking the Dolby Atmos and DTS:X capabilities of the Reserve Series. Sold as a pair.
What Better Sounds Like
Whether they're mounted on your wall or placed atop your Reserve Series loudspeakers, the R900s ensure exceptional 3D Dolby Atmos, DTS:X and IMAX Enhanced performance that make eligible movies, music and games sound incredible.
Amazing Sound And Elegance
Designed to perfectly complement the Reserve series, this optional height module adds exceptionally realistic sound without the hassle of installing speakers in the ceiling.

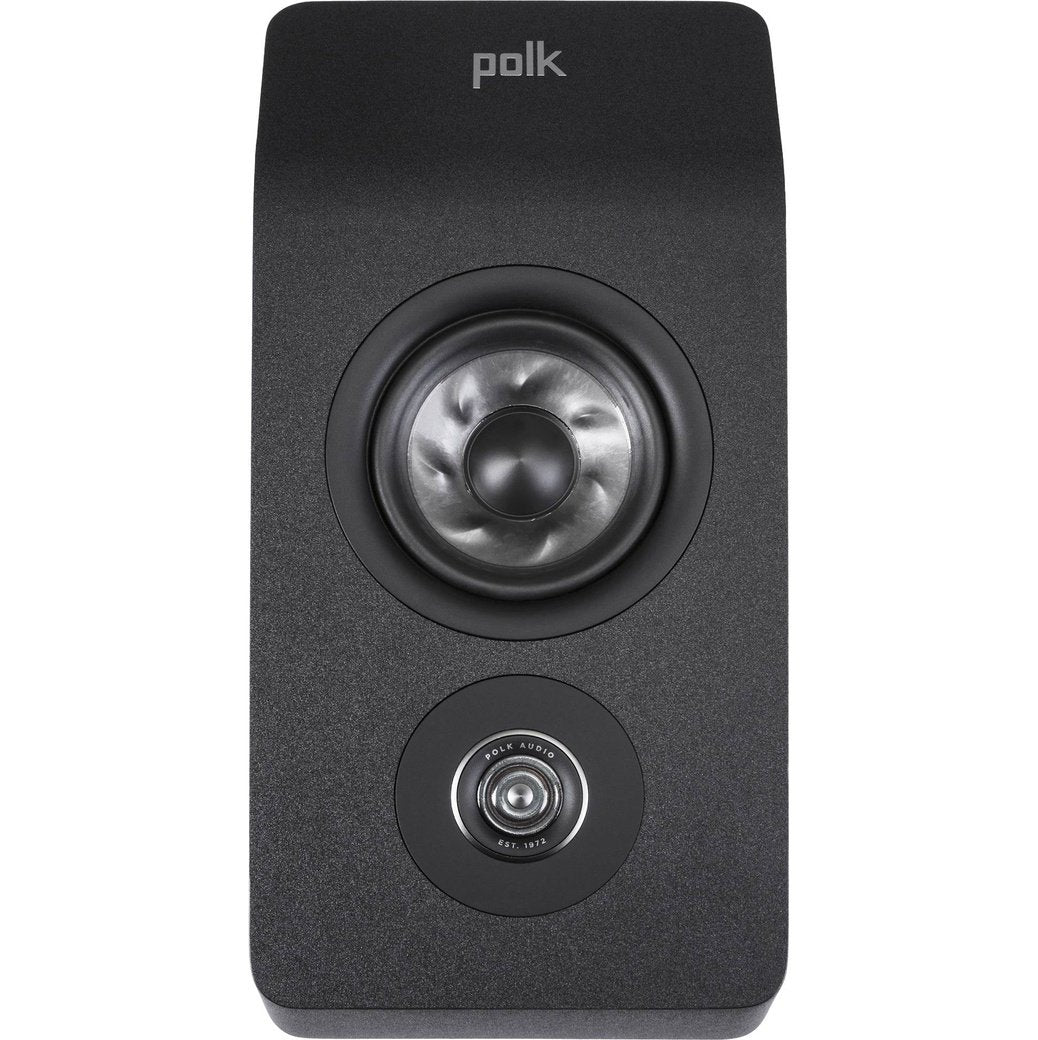

Pinnacle Ring Radiator Tweeter
The Pinnacle Ring Radiator Tweeter’s distinctive pointed shape guides the dispersion of high frequency sounds around a room. This innovation widens the sweet spot and allows you freedom to enjoy your music and movies wherever you choose to sit.
Turbine Cone Woofer
Our pioneering turbine design delivers a significant increase in cone rigidity without increasing mass. This innovation means the woofer can move with increased accuracy and speed to deliver enhanced sound resolution, enabling you to experience a breathtaking level of detail in your music and movies.
Timbre Matched For Premium Performance
Designed with the same driver components of the Reserve series speakers, you can mix and match to create the ultimate home theatre setup.

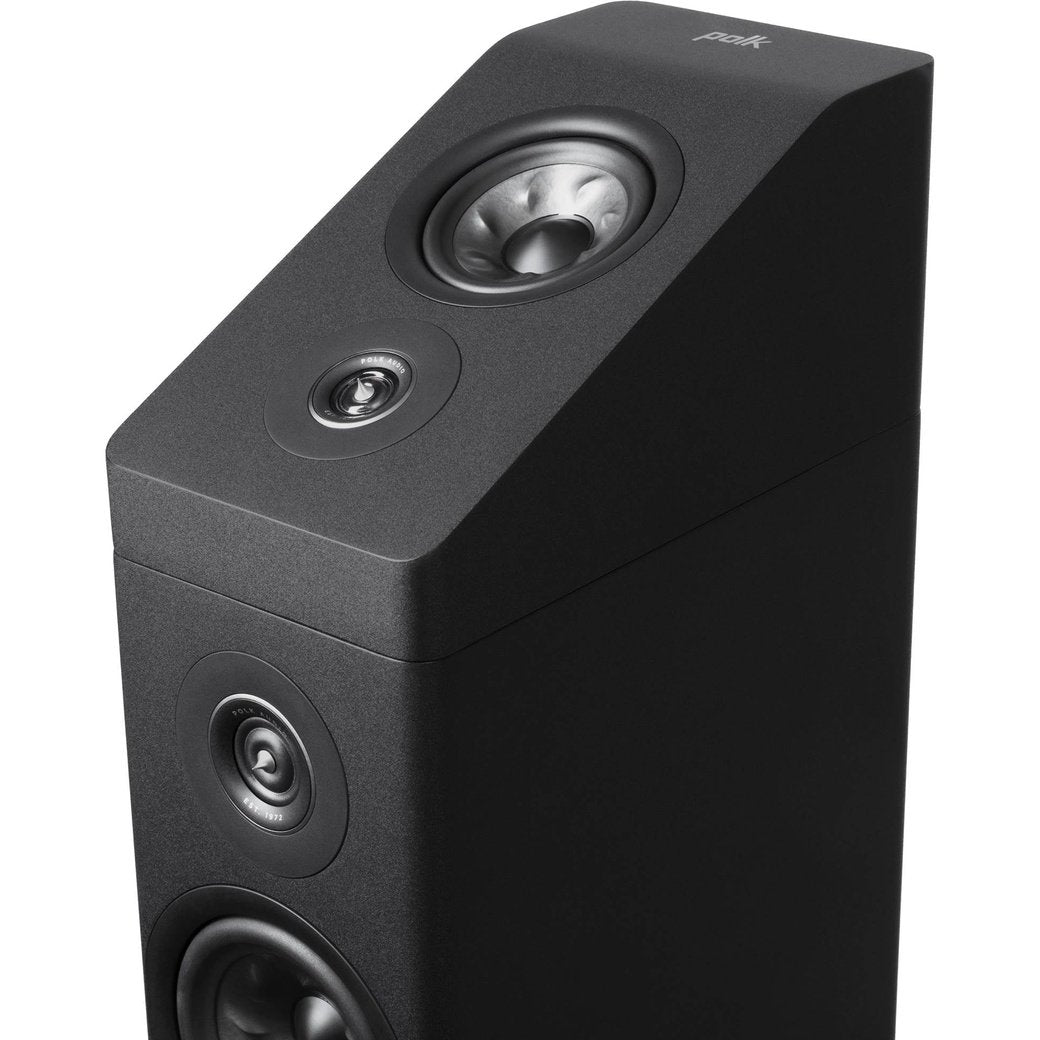

Flexible Placement

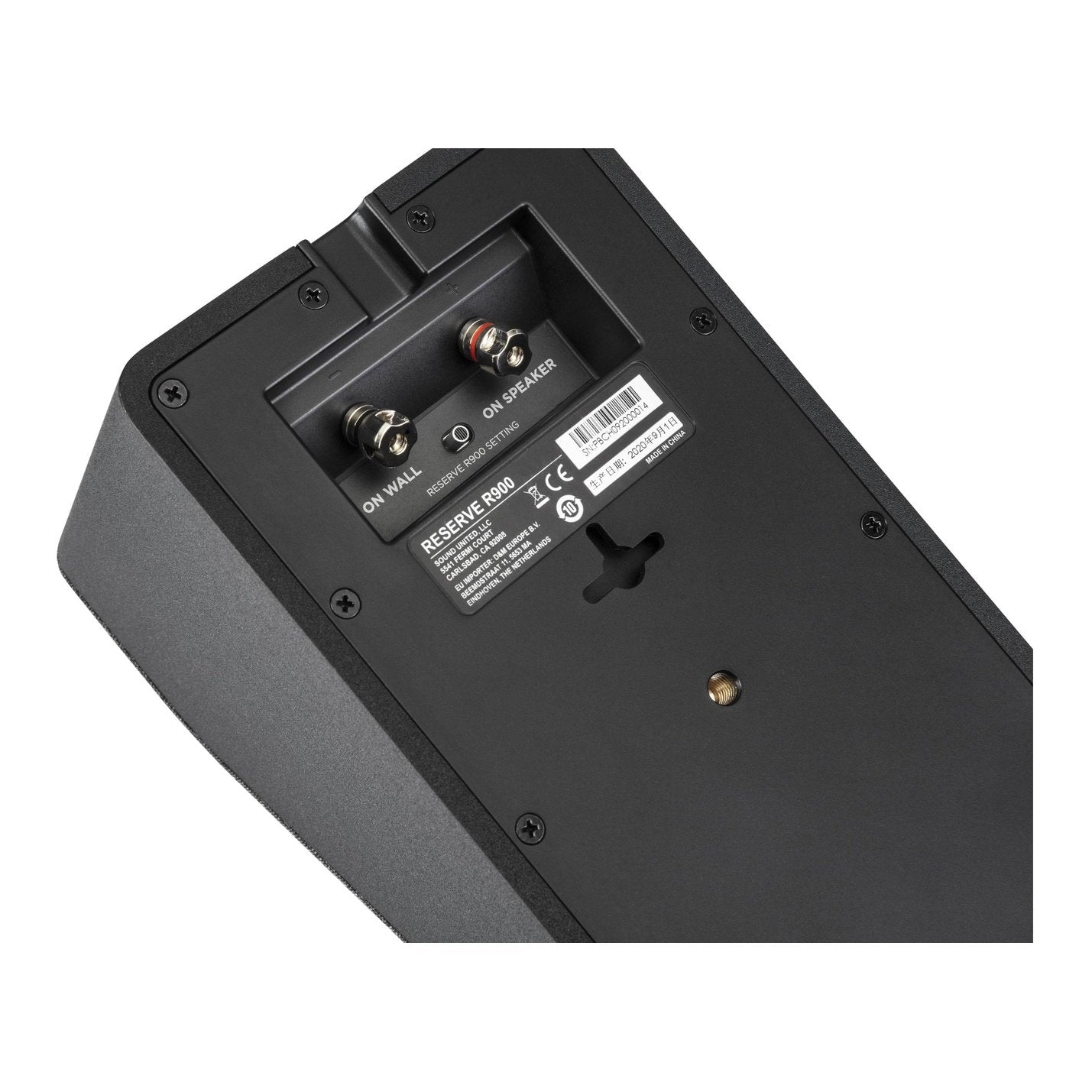

The Polk Reserve R900 height module is Dolby Atmos compatible and designed to meet DTS:X specification. With the ability to wall mount or place on top of a compatible Reserve speaker, this height module allows convenient flexibility. Flip the switch on the back of the speaker to select the desired position and the speaker will automatically adapt to the optimal performance.
Features
- Wall or speaker-mounted
- IMAX Enhanced certified and Dolby Atmos compatible
- Flagship transducer array
- Sleek and elegant design
Specifications
Speaker Type | Height Module |
UOM (Sold As) | Pair |
TRANSDUCER
Tweeter | 0.75" Pinnacle Ring Radiator |
Mid-range/Mid-bass | - |
Woofers | 4” Turbine Cone |
Overall Frequency Response | 50 – 50kHz (when wall mounted) |
Frequency Response (-3dB limits) | 70 – 32kHz (when wall mounted) |
Recommended Amplifier Power | 45 - 100W |
Amplifier Output Compatibility | 8Ω / 6Ω / 4Ω |
Minimum Impedance (ohms) | 4.2Ω |
Sensitivity (2.83V/1m) | 85.5dB (when wall mounted) |
CROSSOVER
Tweeter/Mid-range Crossover Frequency | 2100 |
Mid-range/Mid-bass Crossover Frequency | - |
MEASUREMENTS
Product Dims W x H x D (Includes width of feet) | 166 x 158.3 x 320mm 6.5 x 6.2 x 12.6 in |
Product Weights (each) | 3 kg |
Shipping Weight | 7.3 kg |
CABINETRY
New CRC (Mid-Range Enclosure Type) | - |
Mid-Bass / Woofer Enclosure Type | Sealed |
Available Finishes | Black / Walnut / White |
Feet | Pads |
Wall-Mountable (keyhole slots) | Yes |
Binding Posts: Nickel-plated 5-Way | Single |
Certifications (Non-Safety and Regulatory)
Hi-Res Certified | Yes |
IMAX Certified | N/A |
Shipping Dims (WxHxD) | 415 x 370 x 260mm |
