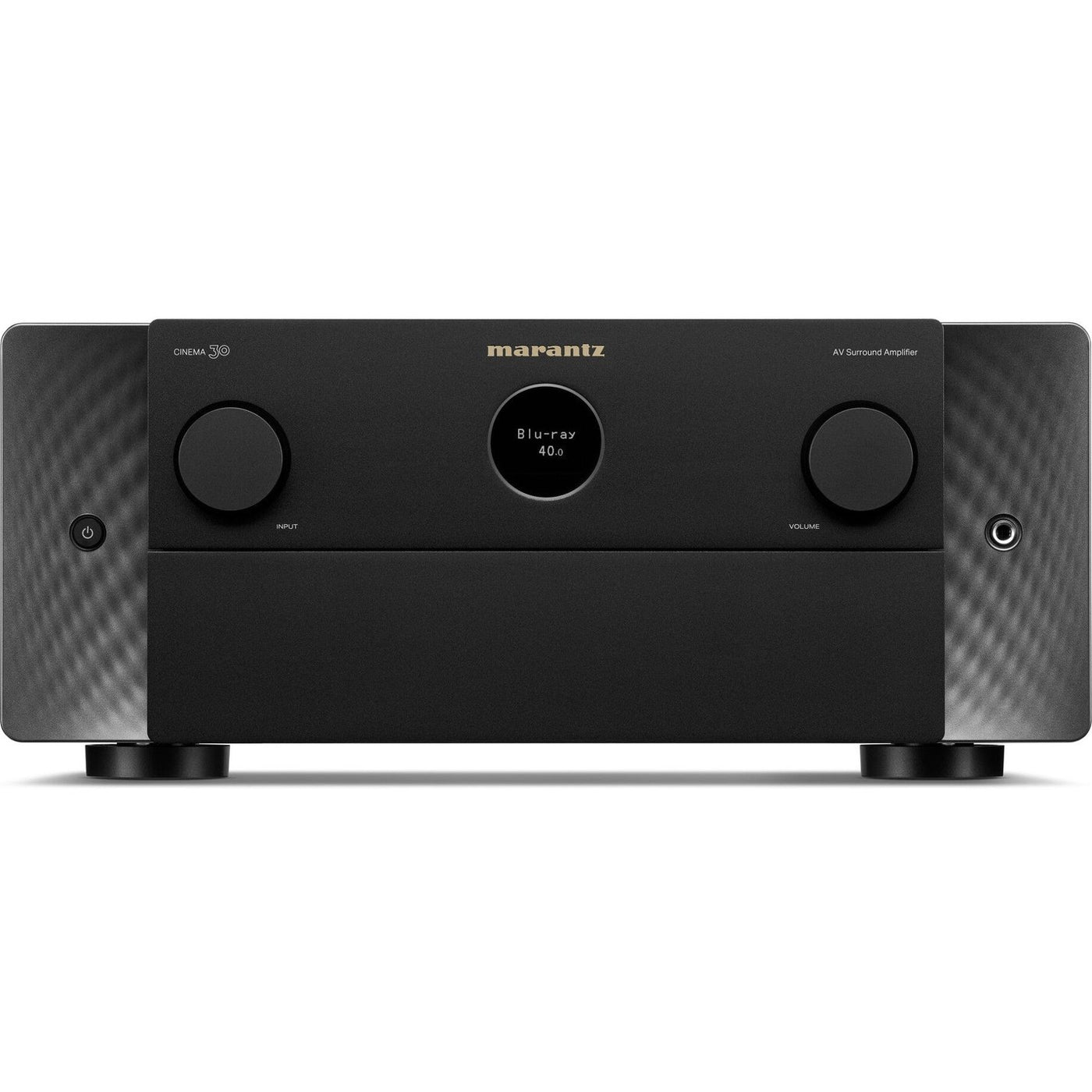

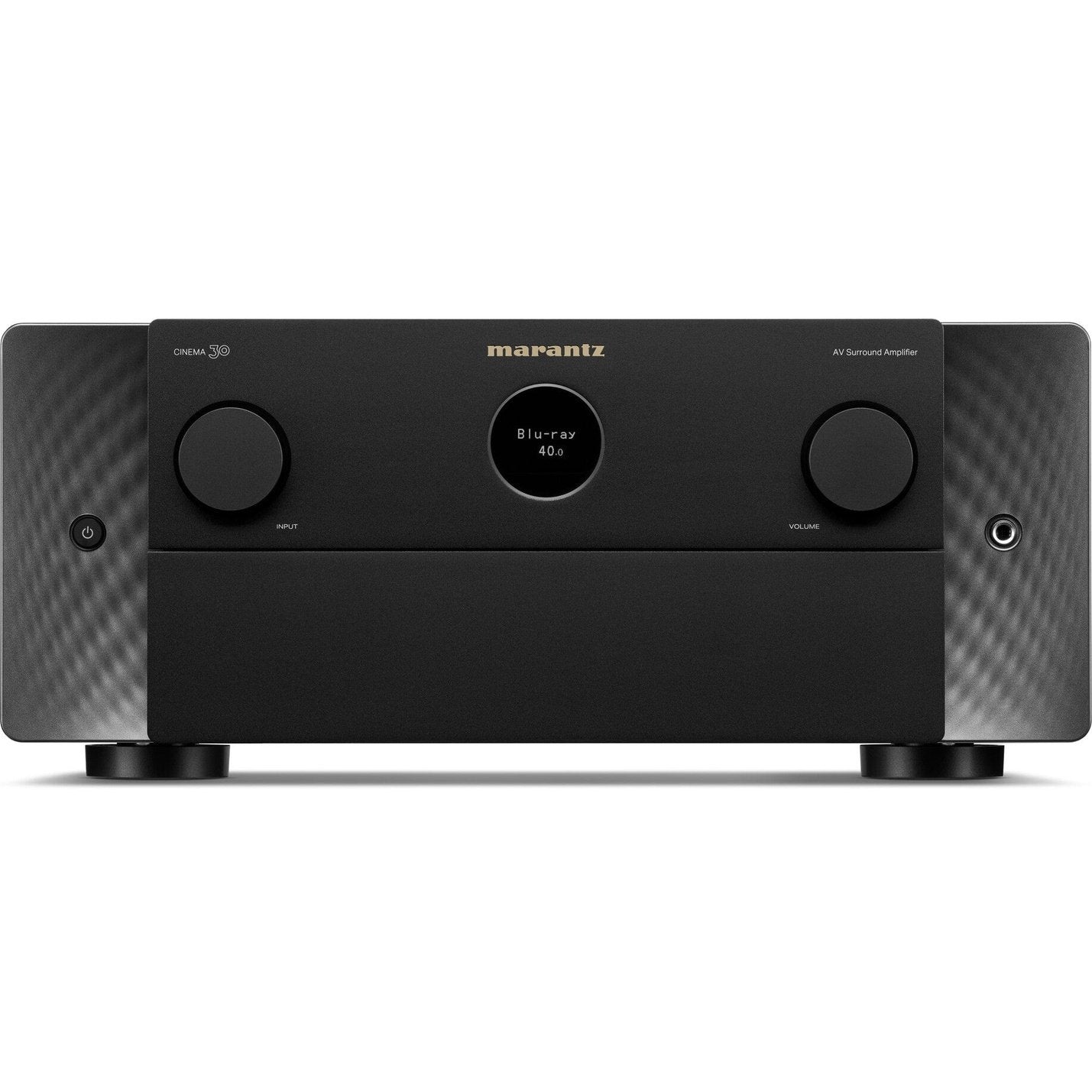

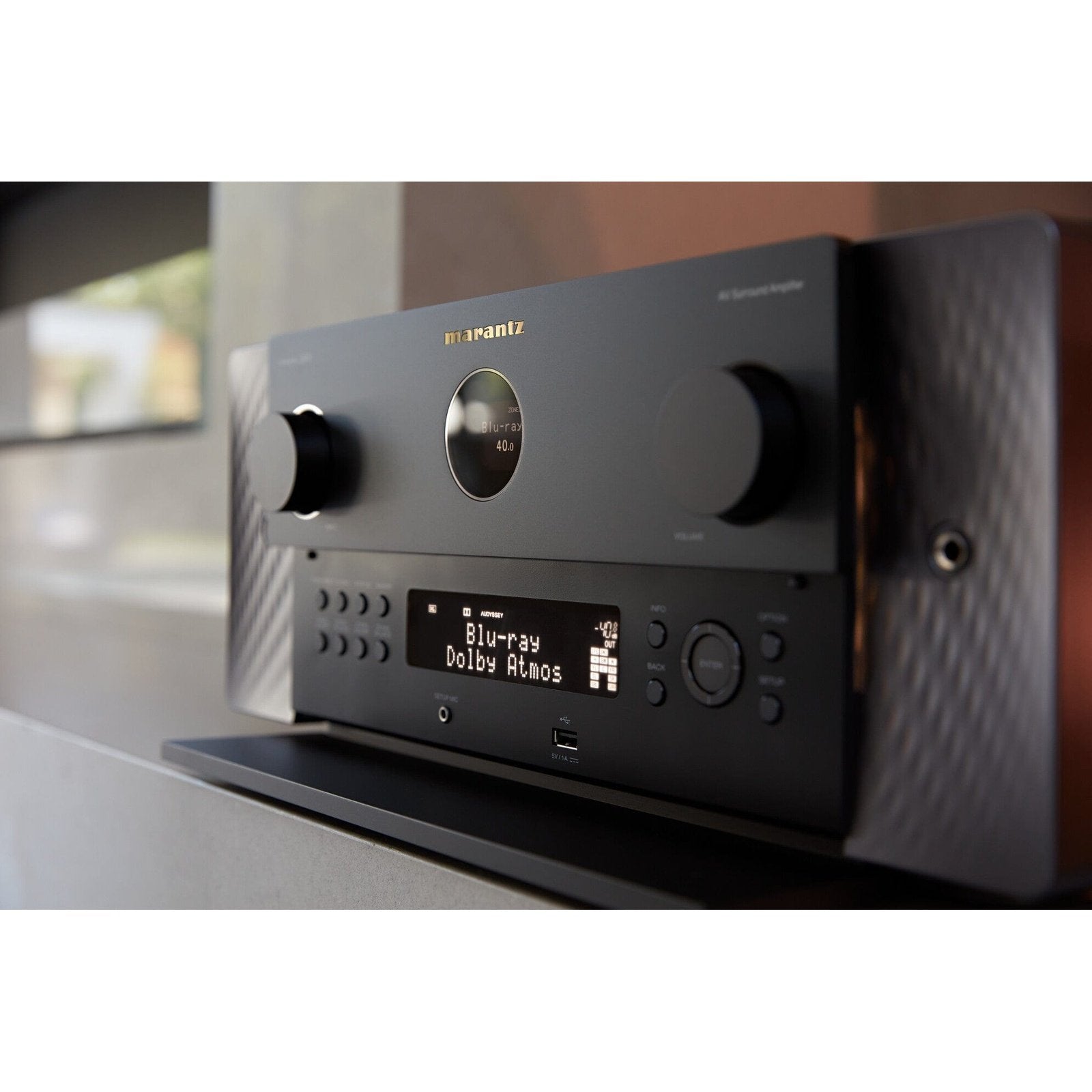

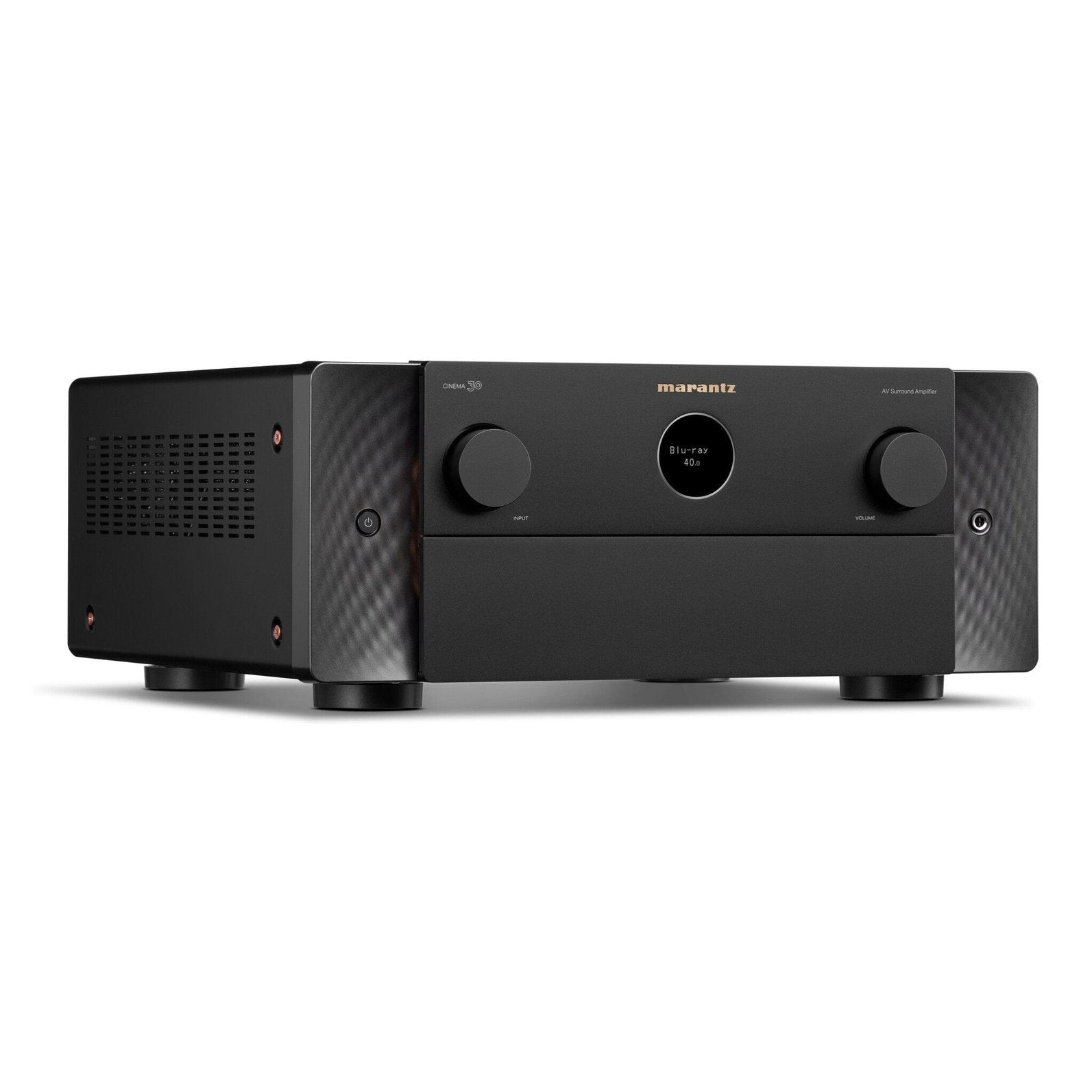

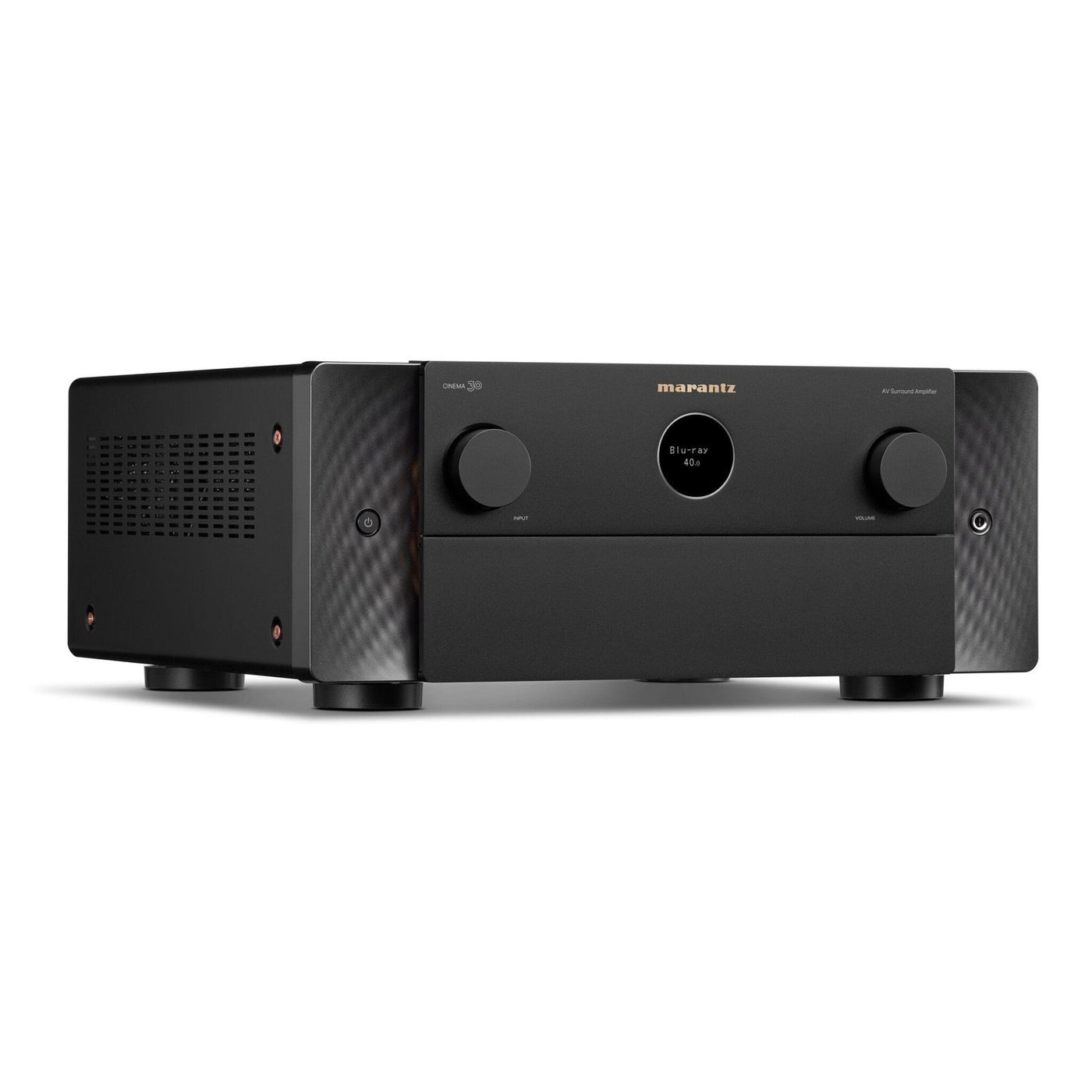

The Epitome of Marantz's Artistry in AVRs Behold the CINEMA 30, a masterpiece among Marantz's AVR creations. Crafted with precision in Japan, adorned with premium enhancements, fine-tuned through a legacy spanning decades, boasting timeless elegance, and meticulously engineered for unparalleled performance, the Marantz CINEMA 30 stands as the cornerstone of extraordinary home theatre experiences.
Key Features
- Experience Tailored Performance, Potent Power, and Seamless Connectivity to Complement Your Listening and Entertainment Preferences
- Unleash the Immersive Potential with an 11-Channel Discrete Power Amplifier, Delivering a Remarkable 140W per Channel (8-ohm, 20Hz – 20kHz, 0.05% THD, 2ch. drive)
- Elevate Your Bass Game with Four Independent Subwoofer Outputs
- Revel in Marantz's Exclusive Hyper Dynamic Amplifier Modules (HDAM SA-2) Amplification Circuitry
- Immerse Yourself in Multi-Dimensional Surround Soundscapes, including Dolby Atmos, DTS: X, IMAX Enhanced, and a Host of Other Formats
- Elevate Your Visual Experience with 8K HDMI Inputs and Outputs, Delivering Astonishing Video Quality from the Latest Ultra-HD Source Devices and Displays
- Enjoy Versatile HDMI Connectivity with Seven Inputs, Supporting 8K Upscaling and Enhanced Audio Return Channel (eARC), Along with Three HDMI Outputs, Including One for a Secondary Monitor (4K) and Zone 2
- Witness Stunning Visuals with 8K/60Hz, 4K/120Hz Pass-Through or Upscaling, Coupled with Support for HDR10+ and Dynamic HDR
- Dive into Enhanced Picture and Audio with Support for Dolby Vision, eARC, and ALLM
- Experience Audiophile-Grade Sound Quality with SHARC Dual DSP and a 32-bit ESS Sabre DAC • Fine-Tune Your Listening Environment with Audyssey MultEQ XT32 Advanced Room Optimisation
- Discover the World of High-Resolution Audio Streaming, Supporting FLAC, ALAC, WAV at Up to 24-bit/192-kHz, as well as DSD 2.8/5.6MHz
- Unlock the Potential of Multi-Room Streaming, Music Playback, and Voice Control with HEOS Built-in
- Stay Connected with Dual-Band Wi-Fi Support (2.4GHz/5GHz) and Dual Antennas
- Seamlessly Integrate with Leading Voice Control Agents and Streaming Services
- Connect Your Turntable Directly with the Integrated MM Phono Input for Analog Bliss
High Power & Low Distortion | 11 Channels & Countless Configurations | No Compromise Engineering | Sound Master Tuned & Calibrated For You |
Each channel is rated at 140W with 0.05% THD, making both powerful dynamics and subtle detail a reality. | Though 11 amplifier channels are built in, CINEMA 30 can process up to 13.4 channels, making the perfect speaker layout for your room easy to achieve. | HiFi performance technologies like HDAM SA-2 and more elevate the CINEMA 30 to performance levels seldom found in an AVR. | Powerful calibration and tuning tools are included, enabling you to get the best performance from your system. |
Specifications
Power Amplifier
Number of Powered Channels | 11 |
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 140 W |
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 175 W |
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 250 W |
70% Guarantee | Yes |
Discrete Power Amplifier | Yes |
Amplifier Topology | Class A/B |
Current Feedback Topology | yes |
Bi-Amp Drive | assignable |
Multichannel Surround Technologies
DTS | DTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X |
Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
Other | |
Max Number of Processing (Preamp) Channels | 13.4 |
IMAX Enhanced | Yes |
Auro 3D | Yes |
Audyssey DSX | Yes |
Multichannel Stereo | Yes |

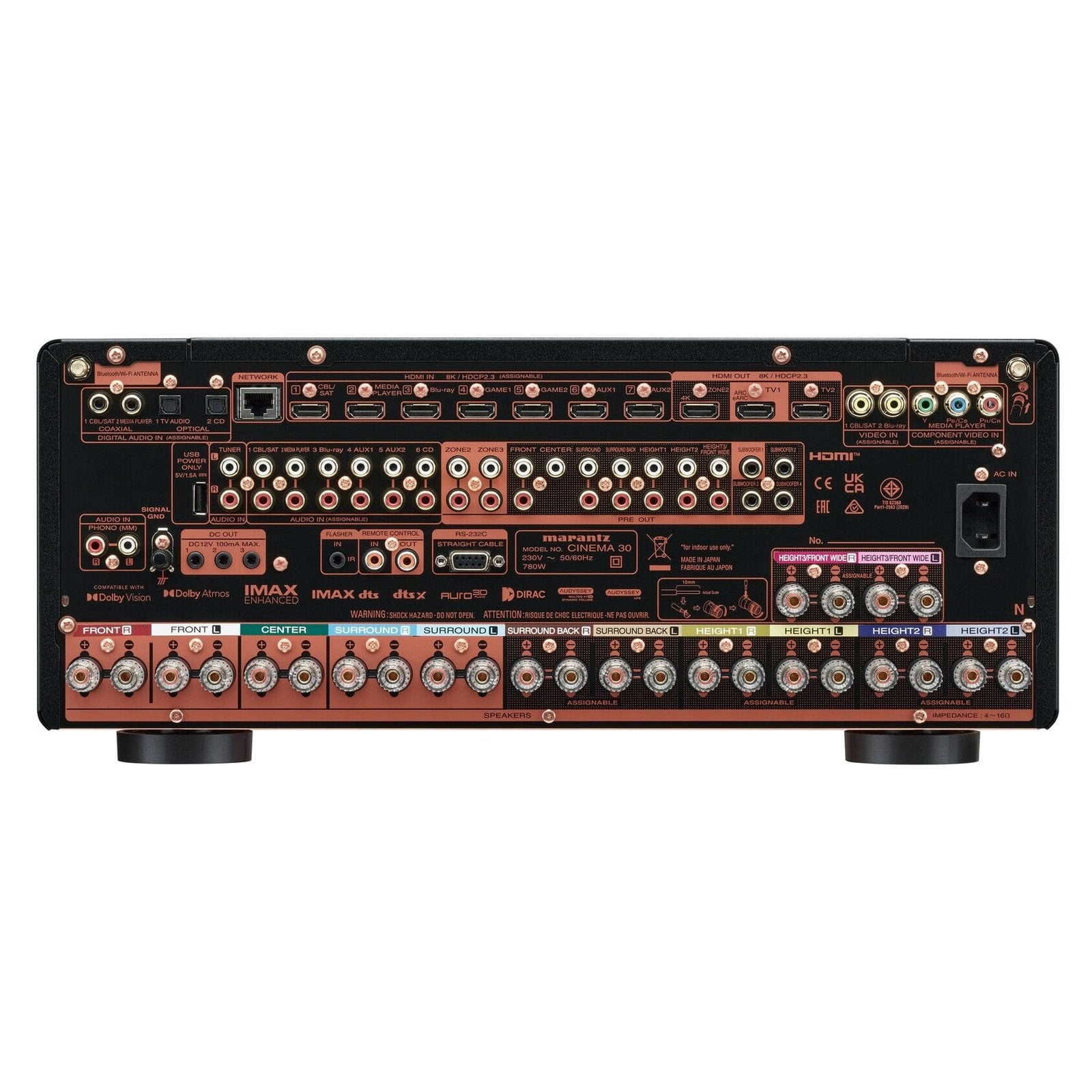

Inputs/Outputs
Composite In / Out | 2 / 0 |
Component In / Out | 1 / 0 |
HDMI In / Out | 7 / 3 |
Multi-Room Video Out via HDMI | 0 / 0 |
Analog In / Fixed Level Out | 3 in / 0 out |
Phono (MM) In | Yes |
Digital In: Optical / Coaxial | 2 / 2 |
Multi-Room Out: analog / digital | 2 / 0 |
Multichannel Preamp Out | 7.2 |
Subwoofer Out | 4 (independent) |
7.1 multichannel input | No |
Number of Speaker Terminals | 13 |
Speaker A / B | assignable |
Multi-Room Speaker Terminal | assignable |
Front Inputs | USB-A |
USB Audio | Yes / No / No |
FM Tuner with RDS | Yes |
DAB+ Tuner | No |
Multi-Room Video Out: Video / HDMI | 7/3 |
analog In/out | 6 / 0 |
Multichannel Pre Out | Yes (13.4) |
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | No / No / No / No / Yes |
HDMI
Total HDMI Inputs / No. Support 8K | 6 / 3 |
HDCP2.3 support | Yes |
HDMI Outputs: Main / Zone | 2 / 1 |
Analog to HDMI Video Conversion | No |
HDMI Upscaling | 1080P/4K to 8K |
Max resolution @ framerate | |
Audio Return Channel | ARC, eARC |
Video Dynamic Range | HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
Variable Refresh Rate / Quick Frame Transport | Yes / Yes / No |
HDMI Pass-Through in Standby Mode | Yes |
CEC | Yes |
DSD Audio over HDMI | No |
Auto LipSync | Yes |
HDMI Inputs: Back / Front | 7 / - |
Video Conversion Analog -> HDMI | Yes |
HDMI to HDMI Scaling | 1080P/4K to 8K |
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB | Yes / Yes |
8K/60Hz AB / 4K/120Hz AB Pass-through In/Out | 7 / 2 (up to 40Gbps) |
HDMI 2.0: 3D / 4K / CEC / ARC | Yes / Yes / Yes / Yes |
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR | Yes / Yes / Yes / Yes / Yes |
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching | Yes / Yes / No |
8K signal pass-through / scaling / GUI overlay | o / o / o |
4K Signal Pass-Through / Scaling / GUI Overlay | o / o / o |
DSD Audio Capability | Yes |
Performance Technologies
Copper Plated Chassis | Yes |
Toroidal Power Supply Transformer | Yes |
Hyper Dynamic Amplifier Modules (HDAM) (List version) | Yes |
Pure Direct Mode | Yes |
Gold Plated RCA Terminals | Yes |
Clock Jitter Reducer | Yes |
Acoustic / Room Correction
Audyssey | MultEQ XT32 |
Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
Audyssey LFC | Yes |
Dirac Live Support | Yes |
Variable Cross Over | Yes |
Optimized Bass Redirection | Yes |
Bass Sync | Yes |
Dirac Live Upgradability | Yes |
Music File Support
Lossy Formats | MP3 / WMA / AAC |
Lossless formats | FLAC HD 192/24 / WAV 192/24 / ALAC 192/31 |
DSD Audio | 2.8 MHz / 5.6 MHz |
Gapless Playback | FLAC, WAV ,ALAC ,DSD |
Compressed Audio Enhancer: MDAX2 | Yes |
Network Audio Sharing | Yes |
Streaming Services
HEOS Multi-room and Streaming | Yes |
AirPlay Audio Streaming | AirPlay2 |
Internet Radio | TuneIn |
Spotify* | Spotify Connect |
Pandora | Yes |
SiriusXM | Yes |
Other Streaming Services * | Amazon Music HD/ Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix |
Roon tested | Yes |
Network Connectivity
Ethernet Ports | Yes |
Wi-Fi (include version / band) | Yes |
Bluetooth (Include version) | Yes |
Bluetooth Re-transmit for Bluetooth headphones | Yes |
Smart Home Integration And Control
Voice Assistant Compatibility | Alexa / Google Voice Assistant / Apple HomePod |
App for Smart Phones & Tablets (iOS & Android) | Marantz AVR App |
HEOS Multi-Room Integrated | Yes |
HEOS Link Compatibility: IR/ IP | Yes /Yes |
Multi-Room zones | 2 |
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | 2 Ch / 2 Ch / Yes / Yes |
Zone Audio Output: Speaker / Preout | Yes / Yes |
Zone HDMI Output from HDMI Source | Yes |
Control Connectivity | IP Control / RS232 Control / Web Control / App Control |
IR Flasher In | Yes |
Marantz Remote Bus | Yes |
DC Trigger Output | 3 |
HDMI Diagnostics | Yes |
Others
Front Display | 2 line FLD + port hole OLED |
Primary Display Size (diagonal in/mm) | |
Secondary Display Size (diagonal in/mm) | |
GUI Languages | 3 |
Setup Assistant | Yes |
Smart Select on Remote | Yes |
Firmware Update by Network / USB | Yes / Yes |
ECO Mode | Yes |
Auto Power off | Yes |
Sleep Timer | Yes |
GUI Overlay on HDMI | |
CEC | Yes |
Auto Speaker Setup by Microphone | Audyssey MultEQ XT32Dirac Live (upgrade) |
Graphic User Interface - GUI | Modern HD GUIModern HD GUI |
Smart Select | Yes |
General
Available Colors | Black/Silver-Gold |
Metal Front Panel | Yes |
System Remote Control | RC-051SR |
Power Consumption in W | 780 |
Power Consumption No-Sound (ECO on/off) in W | 65 W / 110 W |
Standby Consumption in W | 0.2 |
CEC Standby Consumption in W | 0.5 |
Network Standby Consumption in W | Less than 2.0 |
Maximum Dimensions Antenna:Horizontal:(W x D x H) in mm Antenna:Vertical :(W x D x H) in mm W/o Antenna:(W x D x H) in mm |
442 x 384 x 109 ( 442 x 384 x 178 ) 【 442 x 372 x 109 】 |
Weight in kg | 8.7 |
What's in the box | Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord |
Weight in lbs. | 42.8 |
Maximum Dimensions Antenna:Horizontal:(W x D x H) in mm Antenna:Vertical :(W x D x H) in mm W/o Antenna:(W x D x H) in mm |
17.4 x 18.0 x 7.5 (17.4 x 18.0 x 10.2) 【17.4 x 17.6 x 7.5】 |
Pre-Programmed / Learnable / LCD Display | Yes / Yes / Yes |
