MiniDSP 2x4 HD DSP Processor Ideal For Subwoofer Correction

Meet the highly anticipated "reboot" of the best-selling miniDSP 2x4 digital audio processor - the miniDSP 2x4 HD! This compact device is packed with tried and tested audio processing features including versatile parametric EQ, Butterworth and Linkwitz-Riley crossovers, advanced biquad programming, and individual output channel delay.

With miniDSP's "one hardware many plugins" concept, the possibilities for future applications are endless. The upgraded 400 MHz Analog Devices SHARC processor enables substantial processing upgrades, such as 96 kHz internal processing for true high-resolution audio and assignable FIR filter taps for advanced equalisation, crossover, and room correction capabilities. And with user-friendly interface software, accessing and programming these features is a breeze. Not only that, the miniDSP 2x4 HD boasts upgraded I/O capabilities with USB audio streaming up to 192 kHz and a TOSLINK digital input.

Whether for full-sized hifi and home theatre systems, desktops

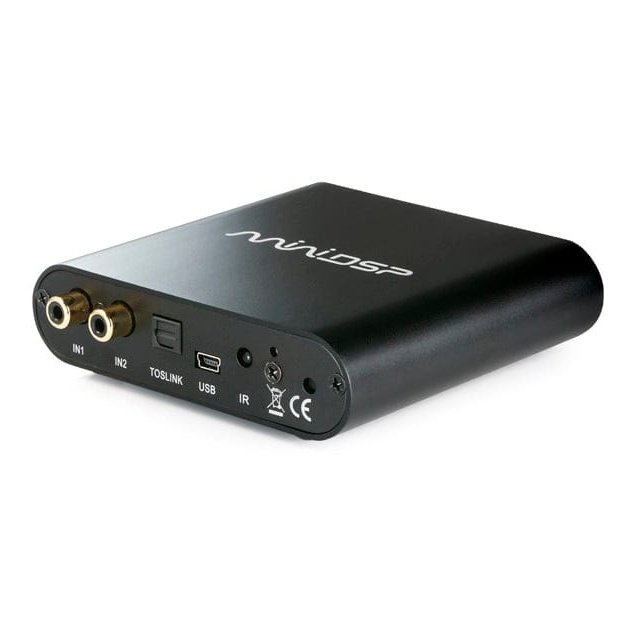

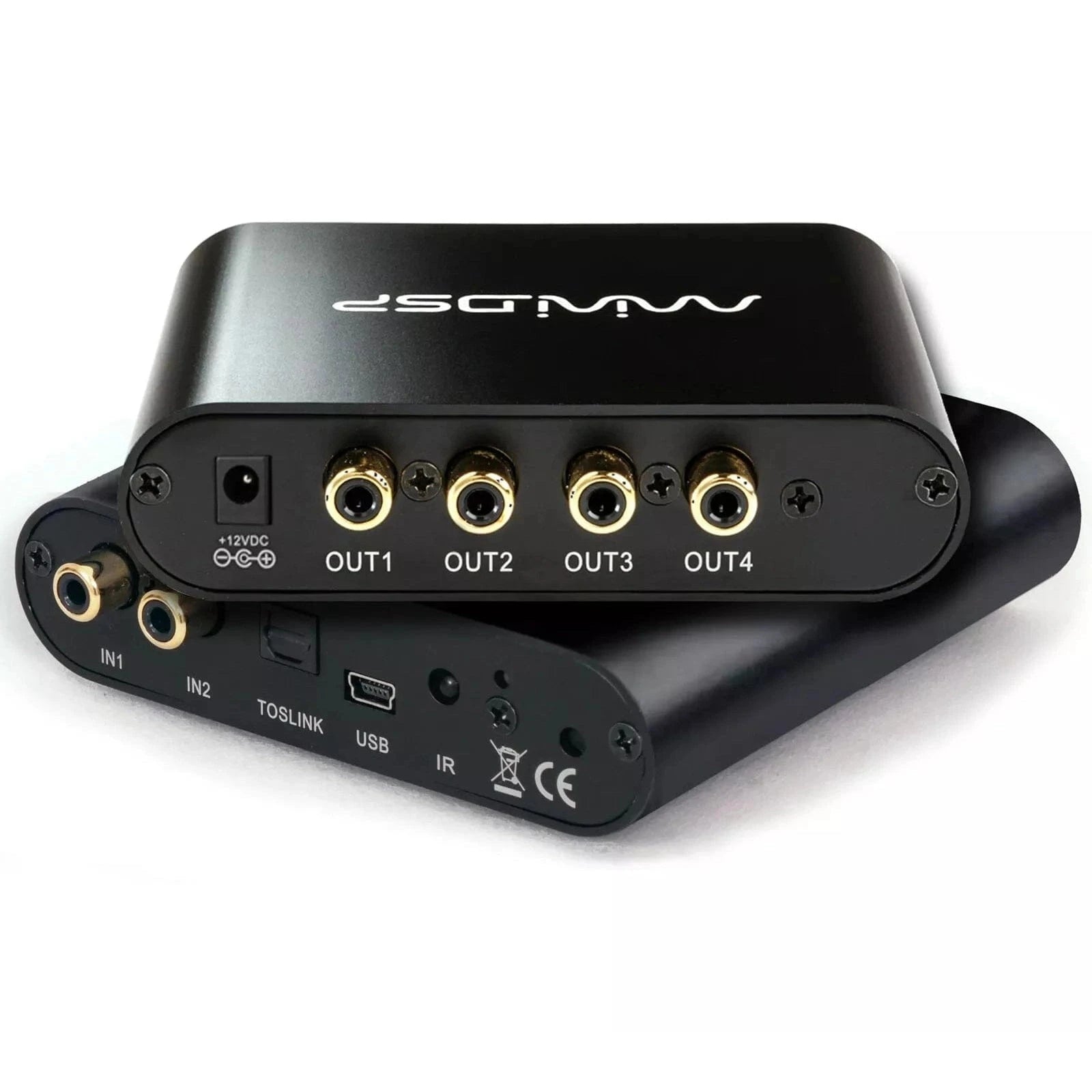

Note: Two MiniDSP 2x4HD's are shown in the first photo to show it from both sides.

Features

• ADSP21489 400MHz Sharc DSP floating point engine
• XMOS Xcore200 for USB control and bidirectional audio streaming
• 24 bit ADC/DAC resolution
• Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms
• Toslink digital input
• Unbalanced outputs: Max 2Vrms
• USB Audio Class 2 Bidirectional streaming with ASIO drivers, driverless under MAC OSx
• 4 preset configuration, recallable via IR, Software
• Plug&Play USB driver and real time Software configuration using miniDSP plug-ins
• Device does not required a PC once configured
• External single 12V supply

What's in the box?

• 1 x MiniDSP 2x4 HD, board assembled and ready to use
• 1 x 12V power supply with UK/EU/US/AU plugs
• 1 x IR remote
• 1 x shielded USB cable
• 1 x plugin automatically included in the user downloads

Specifications
