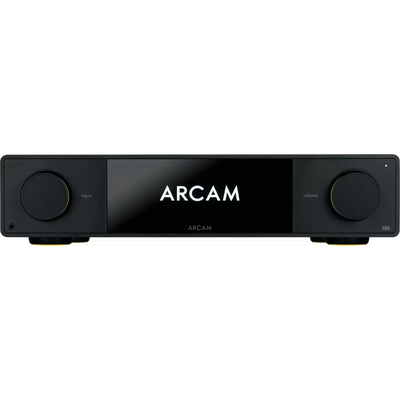

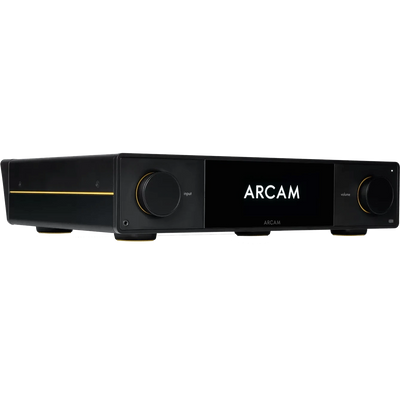

Arcam SA35 Streaming Integrated Amplifier
Pre-Order BONUS PROMOTION. Pre-order the Arcam SA35 between now and 28 Feb 2025 (Limited to the first 20 units) and receive a BONUS pair of KEF Q3 Meta speakers valued at $1300 RRP. To qualify for the BONUS offer you must register your purchase here. Stock Arriving March 2025. Terms and conditions apply.
The new ARCAM SA35 is an all-in-one streaming system designed for the discerning music lover. Crafted in Cambridge, UK, it integrates cutting-edge technology to deliver music with remarkable clarity, nuance, and excitement. It features a newly engineered digital audio and streaming platform, linear toroidal power supply, user-friendly interface, and a brand-new app.

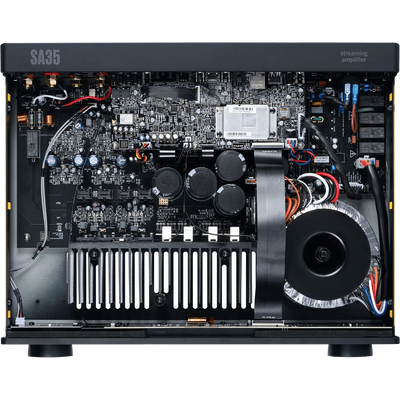

The SA35’s exquisite sound quality stems from a 6-layer digital audio platform, which includes a ground plane to isolate noise from sensitive audio components. The platform is equipped with ESS Hyperstream iV DACs in a balanced configuration with advanced jitter elimination. A newly designed linear toroidal transformer power supply drives the system with minimal noise, while a standby-mode switching supply ensures peak efficiency.
ARCAM’s 5th generation Class G amplifier design builds on decades of innovation, delivering superior sound quality and dynamics. Every component has been meticulously selected to maintain uncompromising performance, ensuring the best sound from this efficient amplifier class.

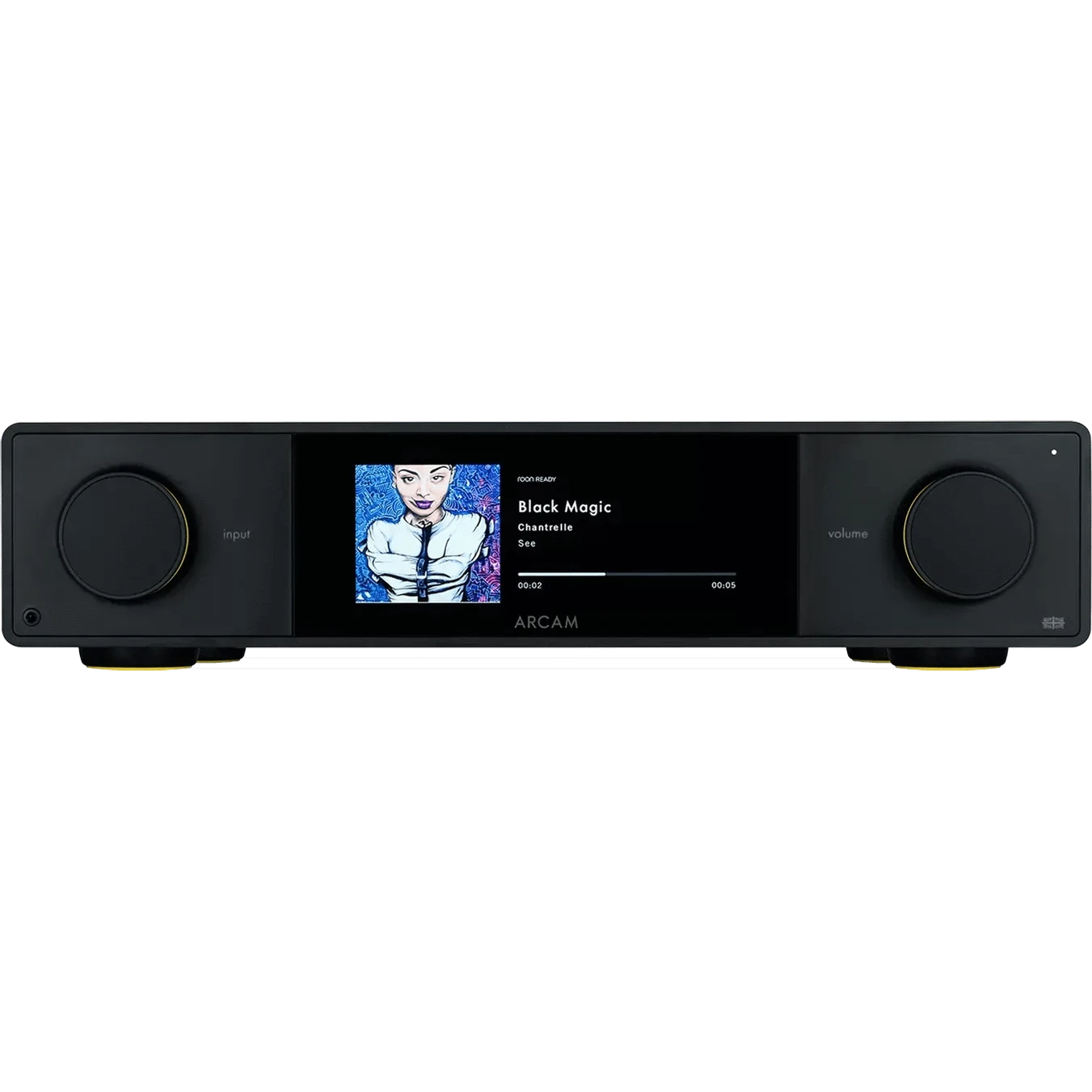

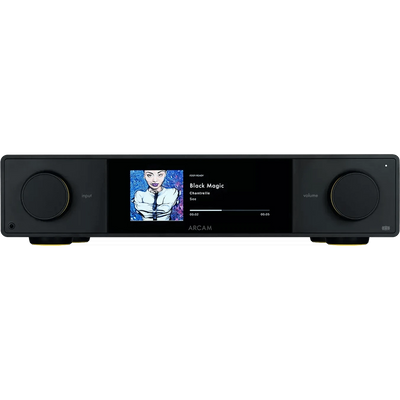

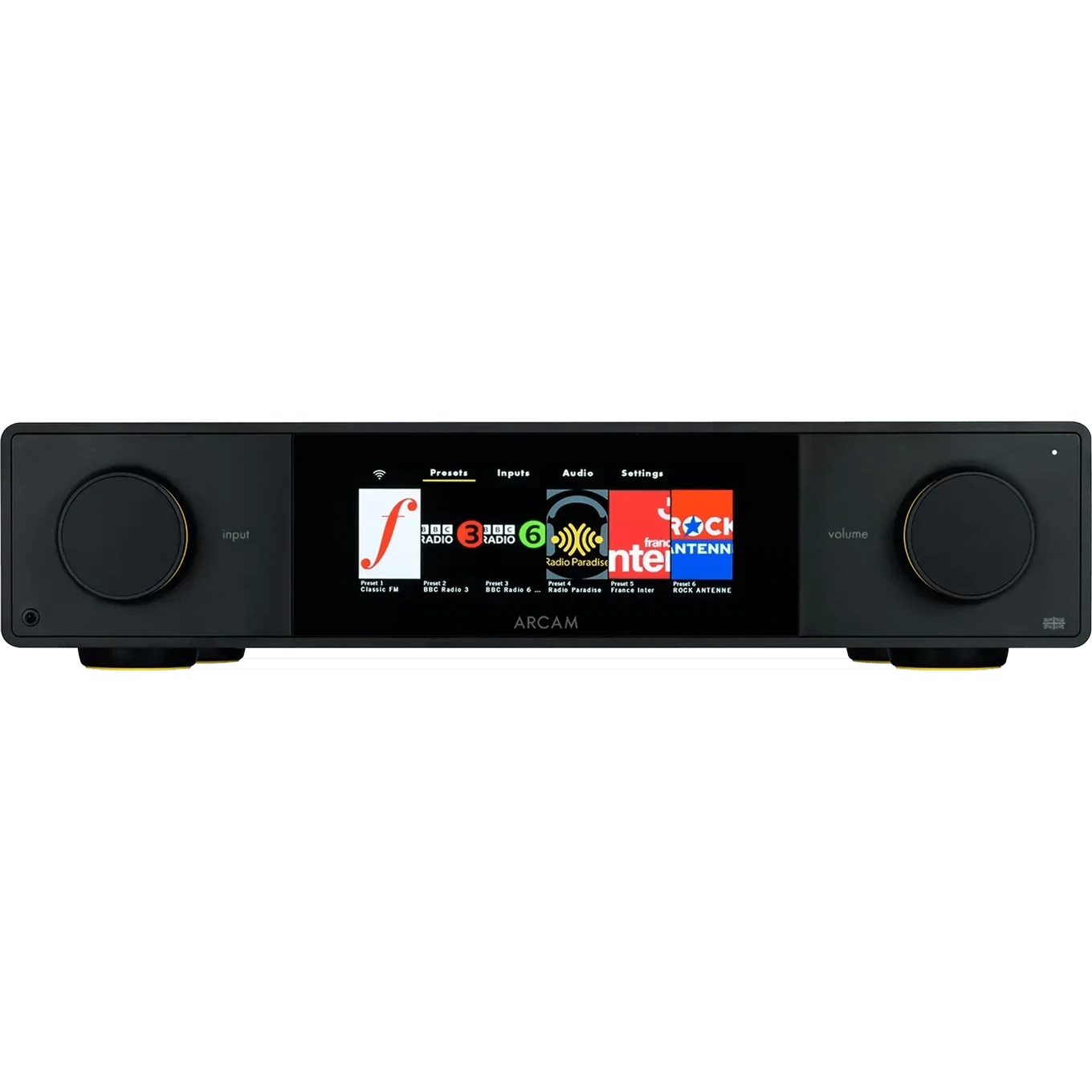

Upfront, the SA35 boasts a 6.5" high-resolution display to showcase album artwork and metadata, easily legible from your chair. It supports a wide range of streaming services, and with Wi-Fi setup via the ARCAM Radia App, you can enjoy instant playback using Apple Airplay, Google Cast, Spotify Connect, Tidal Connect, and Roon.
The SA35 also offers flexibility with subwoofer outputs, Dirac Live Room Correction, and phono inputs for vinyl lovers. Its powerful features make it an ideal high-resolution audio solution in any room, delivering top-tier sound with your preferred speakers.
- Ultra high-resolution streaming platform for premium sound and user experience
- ARCAM Class G amplification with 2 x 120W of ultra-low distortion power
- MM & MC phono inputs
- HDMI eARC input
- Dual subwoofer outputs with Dirac Live Room Correction
- High-resolution display for album artwork and metadata
- Supports Apple Airplay, Google Cast, Spotify Connect, and Tidal Connect
- Bluetooth with Snapdragon Sound and Auracast
- Setup via ARCAM Radia App for presets, internet radio, and podcasts
- Supports up to 32-bit / 384 kHz hi-res audio
- Roon Ready (after launch)
- Plastic-free packaging
Specification :
Continuous power output (0.5% THD), per channel
2 channels driven, 20Hz - 20kHz, 8Ω: 120W
2 channels driven, 1kHz, 4Ω: 200W
Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%
Analogue Inputs
Number of inputs: 3 (RCA pairs)
Phono Inputs: MM and MC
Frequency response: 20Hz - 20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 1V input): 106dB
Digital Inputs
Supported Streaming media: FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (up to 256), MP3, MP4, OGG, WMA
Supported Streaming Bit depth: 16, 24, 32
Supported Streaming sample rates (kHz): Up to 384 kHz
Gapless Playback: Yes

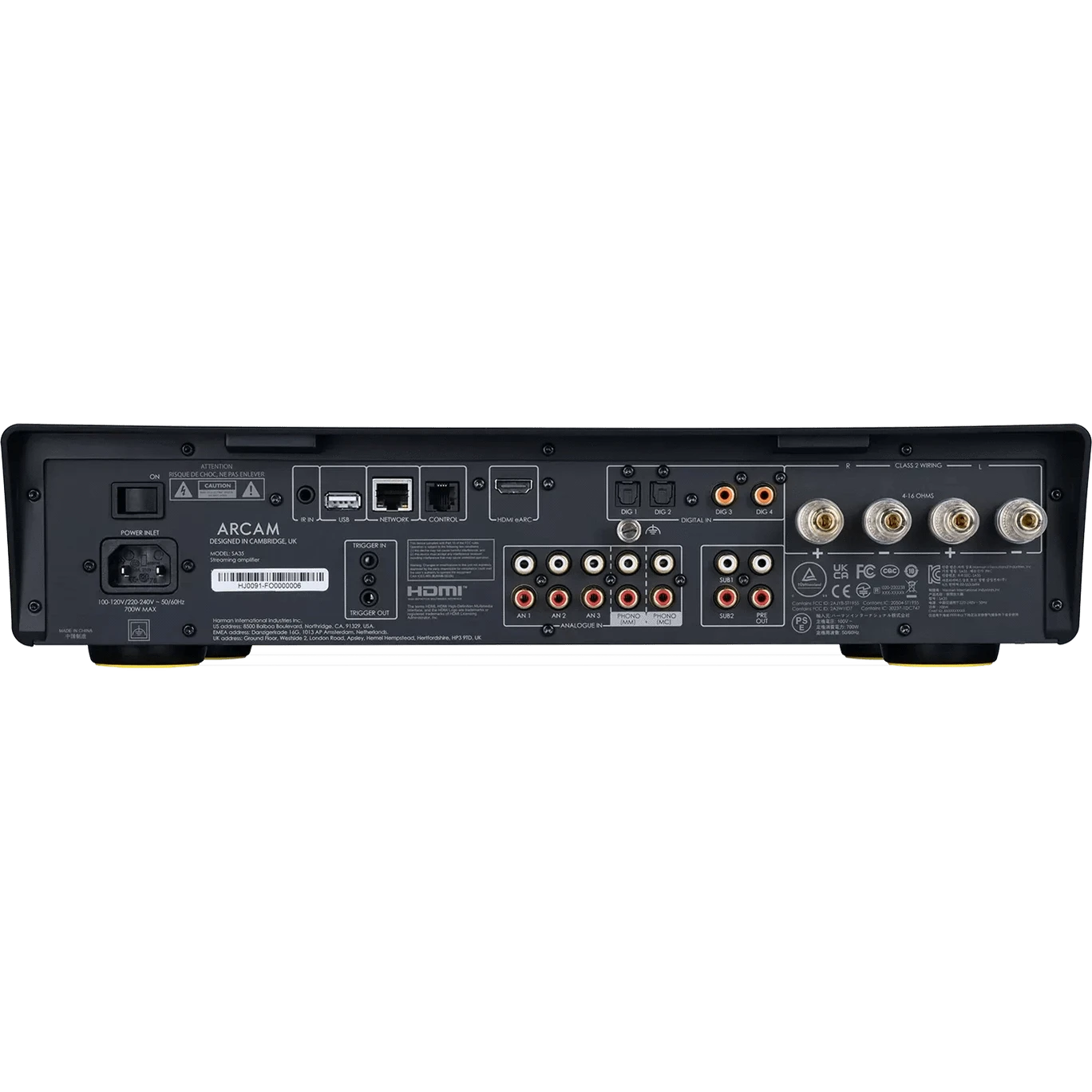

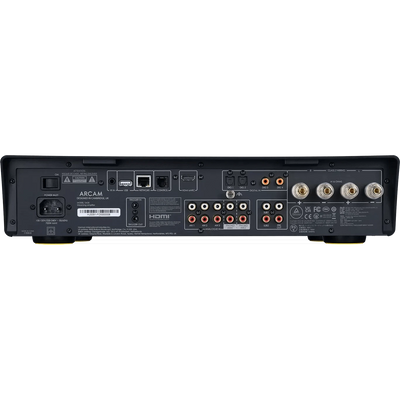

Digital Audio Inputs: 1x HDMI eARC, 2x Coaxial (RCA), 2x Optical (Toslink)
Supported Digital input Bit depth: 16, 24
Supported Digital input sample rates (kHz): Up to 192 kHz
Frequency response (filter 1): 20Hz - 20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 110dB
Wireless Specifications
Bluetooth Profile 5.4: A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast
Bluetooth Transmitter Frequency and Power: 2,402 MHz to 2,480 MHz: <13dBm
Wi-Fi Network: IEEE 8002.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi Transmitter Frequency Range and Power: 2400-2483.5 MHz <20dBm
5G Wi-Fi Transmitter Frequency Range and Power: 5150-5250 MHz <23dBm, 5250-5350 MHz & 5470-5725 MHz <20dBm, 5725-5850 MHz <14dBm
General
Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum): 700W
Power consumption (standby): <0.5W
Dimensions (W x D x H): 432 x 344 x 99mm
Weight (net): 12 kg
Weight (packed): 14 kg
