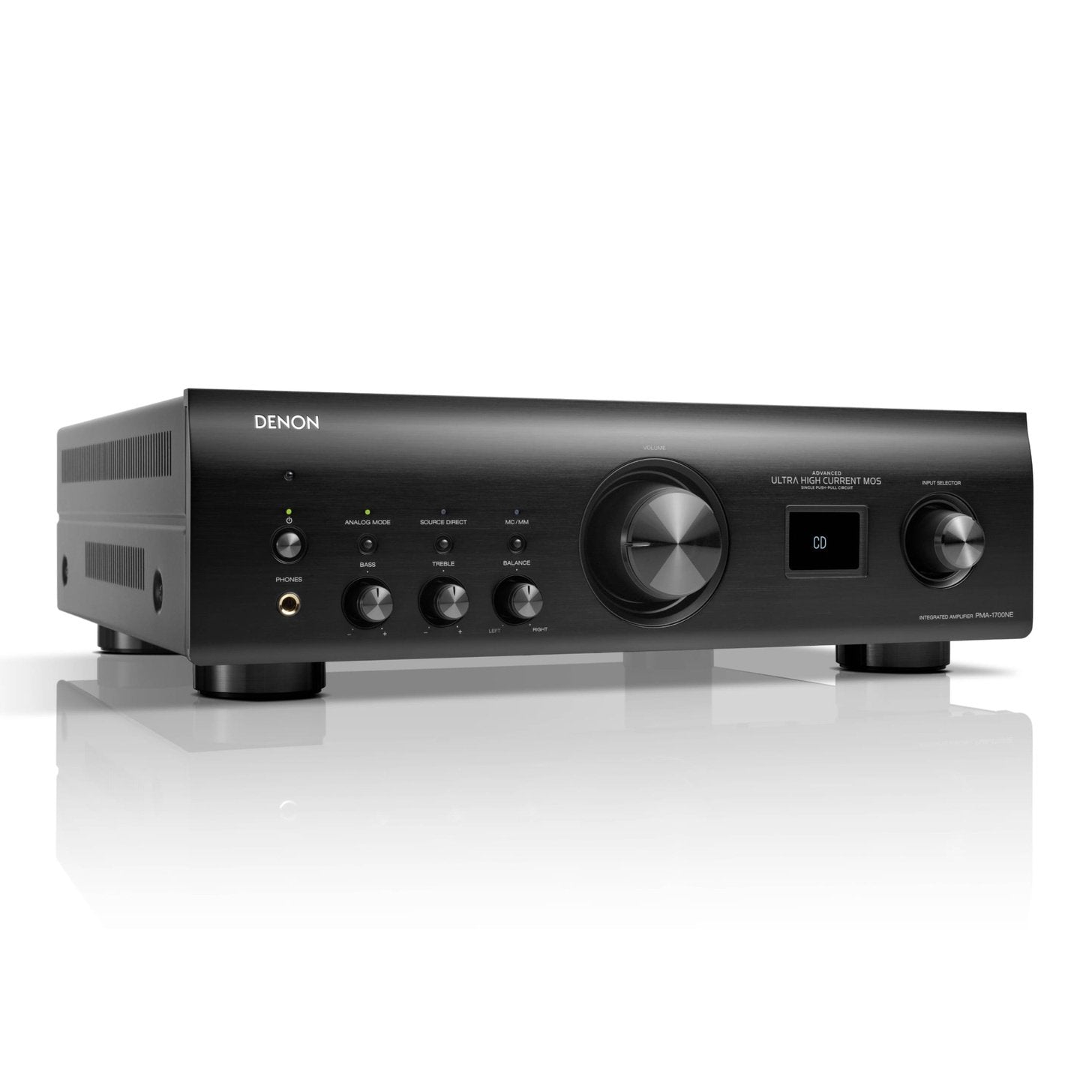

Name: Denon PMA-1700NE Integrated Amplifier
Brand: Denon
SKU: PMA1700NEBKE2AU
Price: 2099.0 AUD
Availability: InStock
Rating: 4.4 (23 reviews)

Denon Denon PMA-1700NE Integrated Amplifier - Pre-Order Integrated Amplifiers

RRP $2,999.00 $2,099.00 Save 30%

Quantity

[{"id":45648026763522,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"PMA1700NEBKE2AU","requires_shipping":true,"taxable":true,"featured_image":{"id":37631345721602,"product_id":7746032861442,"position":2,"created_at":"2022-07-20T15:49:42+10:00","updated_at":"2022-07-20T16:18:41+10:00","alt":"Denon Denon PMA-1700NE Integrated Amplifier - Pre-Order Integrated Amplifiers","width":1456,"height":1456,"src":"\/\/www.customht.com.au\/cdn\/shop\/products\/denon-integrated-amplifiers-pma-1700ne-37631341428994.jpg?v=1658297921","variant_ids":[45648026763522]},"available":true,"name":"Denon PMA-1700NE Integrated Amplifier - Black","public_title":"Black","options":["Black"],"price":209900,"weight":16000,"compare_at_price":299900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Denon Denon PMA-1700NE Integrated Amplifier - Pre-Order Integrated Amplifiers","id":30209269825794,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1456,"width":1456,"src":"\/\/www.customht.com.au\/cdn\/shop\/products\/denon-integrated-amplifiers-pma-1700ne-37631341428994.jpg?v=1658297921"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45648026796290,"title":"Silver","option1":"Silver","option2":null,"option3":null,"sku":"PMA1700NESPE2AU","requires_shipping":true,"taxable":true,"featured_image":{"id":42066291556610,"product_id":7746032861442,"position":9,"created_at":"2024-11-17T10:03:43+11:00","updated_at":"2024-11-17T14:13:13+11:00","alt":null,"width":739,"height":739,"src":"\/\/www.customht.com.au\/cdn\/shop\/files\/IMG_8471.jpg?v=1731813193","variant_ids":[45648026796290]},"available":true,"name":"Denon PMA-1700NE Integrated Amplifier - Silver","public_title":"Silver","options":["Silver"],"price":209900,"weight":16000,"compare_at_price":299900,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":34518605299970,"position":9,"preview_image":{"aspect_ratio":1.0,"height":739,"width":739,"src":"\/\/www.customht.com.au\/cdn\/shop\/files\/IMG_8471.jpg?v=1731813193"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Buy now, pay later with:

Free Delivery Australia Wide

Local Australian Warranty

1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Orders will usually take between 1-6 days for delivery, depending on your location and shipping method.

If your order has not been delivered within 7 days of shipping we recommend you reach out to us directly to investigate with Australia Post / Courier.

If for any reason you haven't followed up with us within 30 days of shipping, we'll be unable to guarantee your delivery of your item unless it has been returned to sender.

Featuring advanced ultra-high current single push-pull circuit power with Advanced AL32 Processing Plus, the Denon PMA-1700NE integrated amplifier delivers music that’s faithful to the original recording.

High-Power 140W Integrated Amplifier

Drive your loudspeakers with 140 Watts of power per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.

Advanced AL32 Processing Plus

Advanced AL32 Processing Plus supports digital audio sources up to high-resolution of 384-kHz/32-bit. The algorithms restore information that was lost during the digital recording to ensure detailed playback.

USB-DAC

PMA-1700NE provides USB-DAC function that supports high resolution audio signals up to 11.2-MHz DSD and 384-kHz/32-bit PCM. These digital signals with suppressed jitter will get passed on to the high quality DAC for an optimal D/A conversion with highest precision.

MM and MC Phono Equaliser

The PMA-1700NE includes a phono equaliser that supports input from both MM and MC cartridges. The simple, straightforward design significantly improves sound quality.

Specifications

General

Unit (W x D x H)	434 x 410 x 135mm 17.1 x 16.1 x 5.3in
Cabinet Size (W x D x H)	434 x 374 x 135mm 17.1 x 14.7 x 5.3in
Net weight	17.6kg 38.8lb
Packaging Dimensions (W x D x H)	548 x 520 x 249mm 21.6 x 20.5 x 9.8in
Packaging gross weight	20.4kg 45lb
Carton Color	2 Color
Cushion / Packing	4 Separate / Sheet
Panel Color	SP / BK
Front (Center) Panel	Aluminum
Side cover	SECC with 4 straight emboss
Side screw	SP: Nickel / BK: Black
Rear Panel	SECC t1.0mm
Chassis Material	SECC t1.2mm
Bottom Layer	Single
Volume Knob	Aluminium
Input Selector	Aluminium
Bass/Treble/Balance/ Phono Sel knobs	Aluminium
Power button	Aluminium
Other knob/button (LOUDNESS, SOURCE DIRECT etc)	Mold (Source Direct,Analog Mode,MM/MC)
Foot	ABS resin with rigid rib w/Hot stamp (H : 20mm)
Heatsink for Power Amplifier	Extruded Aluminium

Specifications

Rated Output Power	70W + 70W (8ohm,20Hz-20kHz,THD0.07%) 140W + 140W (4ohm, 1kHz, THD0.7%)
Speaker Impedance	A or B : 4 ~ 16ohm A + B : 8 ~ 16ohm
Frequency Response	5Hz - 100kHz (0~ -3dB)
Total Harmonic Distortion	0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
Dumping Factor	100 and over
Input Sensitivity: Phono input	MM: 2.5 mV / 47 kohm MC: 200
RIAA Deviation	20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input	MM : 130mV / 1kHz MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER	125 mV / 19 kohm
Input Sensitivity: Power Amp input	0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio	PHONO (MM): (89dB) PHONO (MC): (74dB) CD: (107dB)
Tone Control	BASS : 100Hz ±8dB TREBLE : 10kHz ±8dB
Power Consumption	295W
at Standby	0.2W TV autoplay off 0.4W TV autoplay on

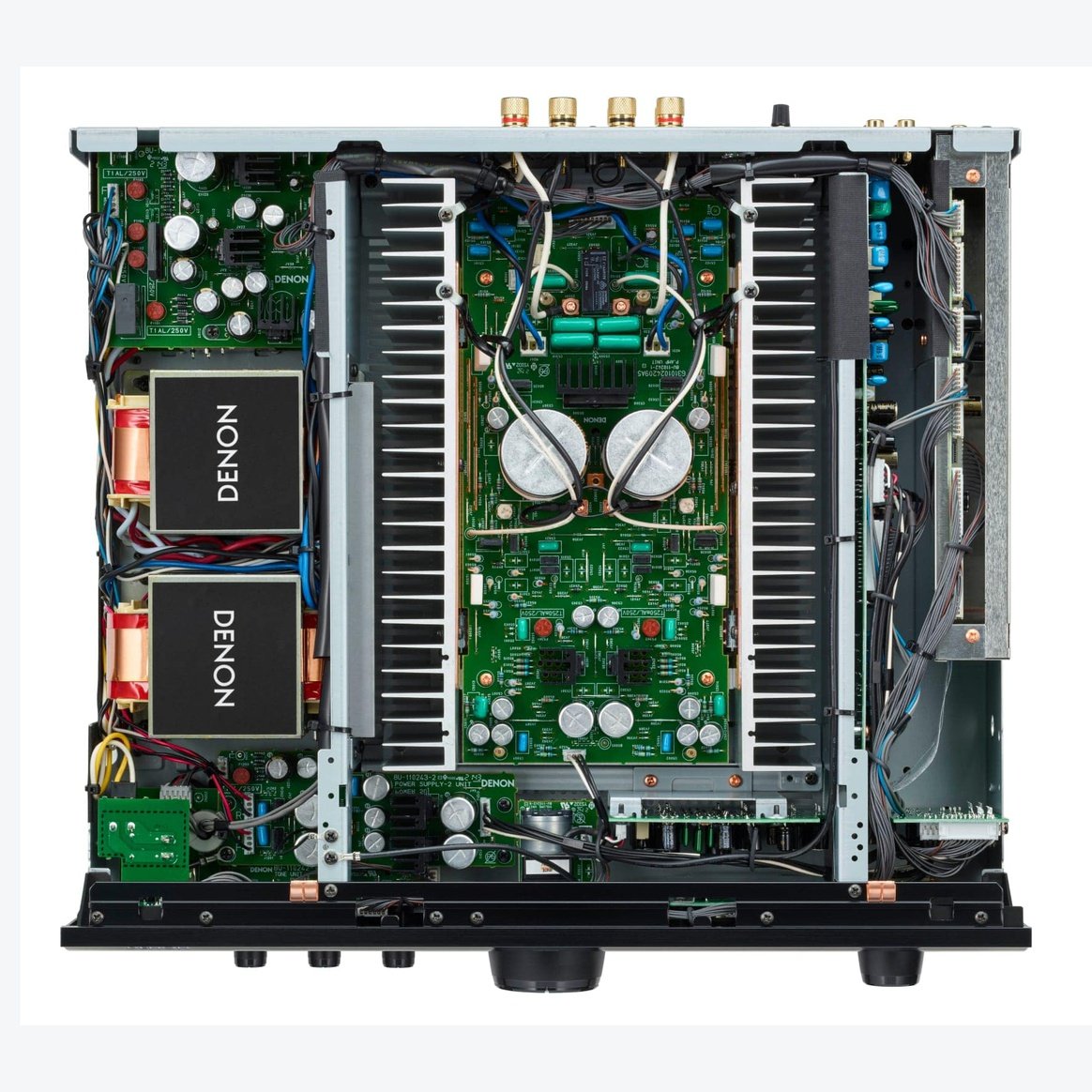

Audio Feature

Power Amplifier Circuit	New UHC-MOS Single Push Pull (7)
Power Trans	Dual El Core
Pre Amplifier Circuit	Variable Gain Preamplifier (OP AMP)
Volume	Electric (MUSES 72323)
Bass / Treble / Mid / Balance Control	Yes / Yes / No / Yes
Type of Tone Control	Electric Controlled by Potentiometer
Headphone Circuit	Use Power amplifier
Source Direct	Yes
Analog Amp Mode	Yes (button on front panel)
Other	70
DAC Circuit	PCM1795
Digital Filter	Fixed
Digital Processing	Advanced AL32 Processing Plus
DAC Master Clock Design (Not Support Network Playback)	Yes
Asynchronous mode (for USB-B input)	yes
Isolator (for USB-B input)	Yes Full Isolation

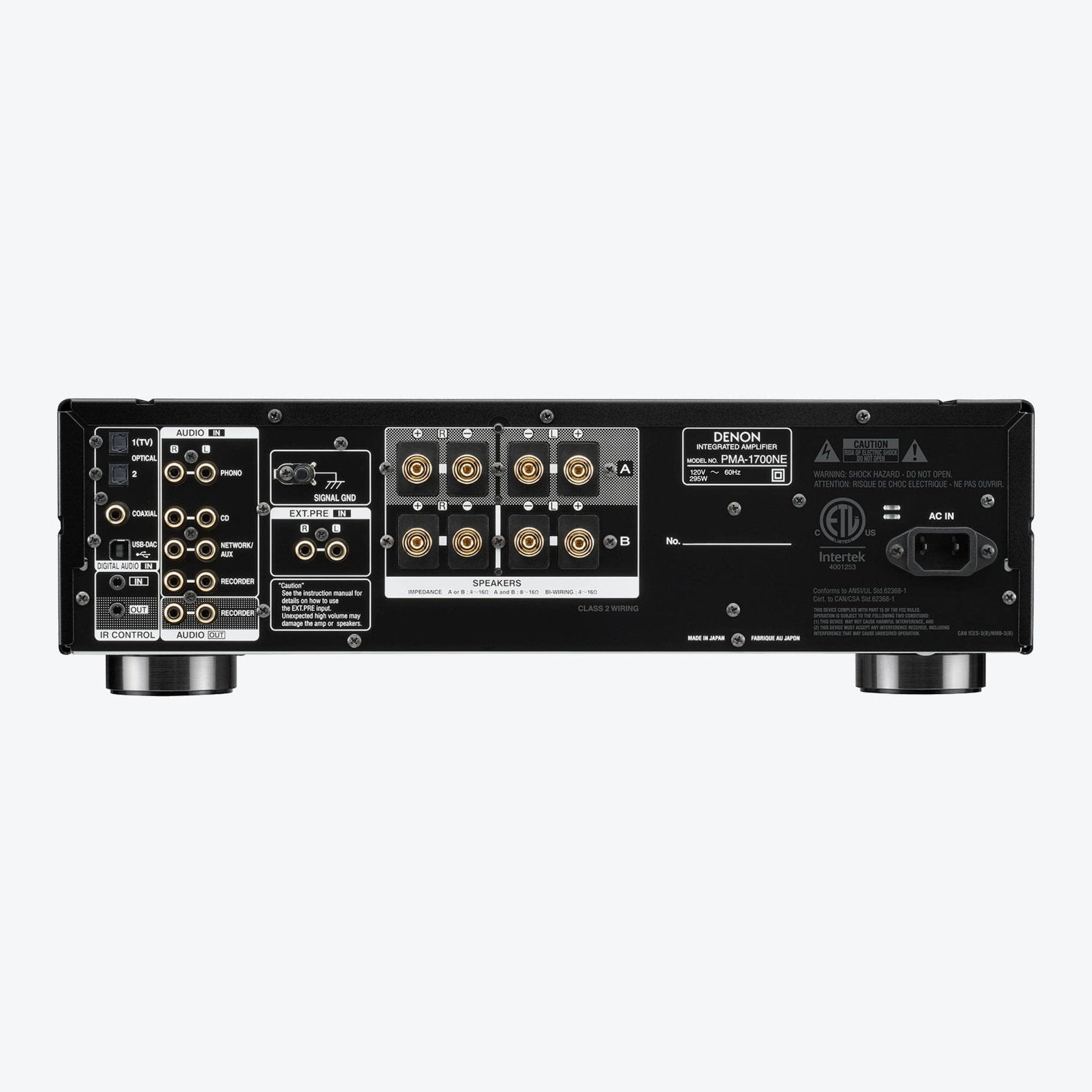

Connectivity

Phono Input	Yes (MM / MC) *default=MM
Analog Input (include Phono) / REC Out (RCA)	4/1 (PHONO / CD / NETWORK ,AUX/ RECORDER)
Optical input / output (Maximum Support)	2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support)	1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct)	Yes(Ext.Pre)
2 sets of Speaker Output	Yes (Bi-wiring)
Speaker Terminal	Gold Plated
Headphone Output	1 (Turn off the speaker when inserting headphone)
Remote Control Bus Terminal	Yes (mini)
AC Inlet	Yes
Wi-Fi	No
HEOS	No
USB B (USB DAC)	1 (Rear)
Module or Main Device	New XMOS (XU210-256-TQ128 )
PCM Sample Rate	~384kHz/32bit
DSD Audio Streaming (DoP)	~11.2MHz
Roon Certification	Yes(Roon Tested) TBD

Control

Remote Controller	System Remote (w/CD Player Control)
Unit control (Button)	Push Switch: 1 POWER Tact Switch : 3 ANALOG MODE, SOURCE DIRECT, MM / MC
Unit control (Knob)	5 VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
LED	POWER: 1 Red / Green ANALOG MODE: 1 Green SOURCE DIRECT: 1 Green MM / MC :1 Green
Front Panel Display	Yes (OLED 128 x 100 dot) MXS4036-A
Display Language	Alphabetical
Dimmer for Front Display	Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus)	Yes
TV Auto-play (Opt/Coax digital-in detecter)	Yes
Last Function Memory	Yes
Auto Standby Mode	Yes
Owner's Manual	Web Manual E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) E3: (English, French, Spanish) E1C: (Simplified Chinese) JP: (Japanese) Paper JP: (Japanese)
Quick Start Guide	Paper E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) E3: (English, French, Spanish) E1C: (Simplified Chinese) JP: (Japanese)
Remote Controller	Yes
Battery	Yes (AAA x2)
Power Cord	Yes
