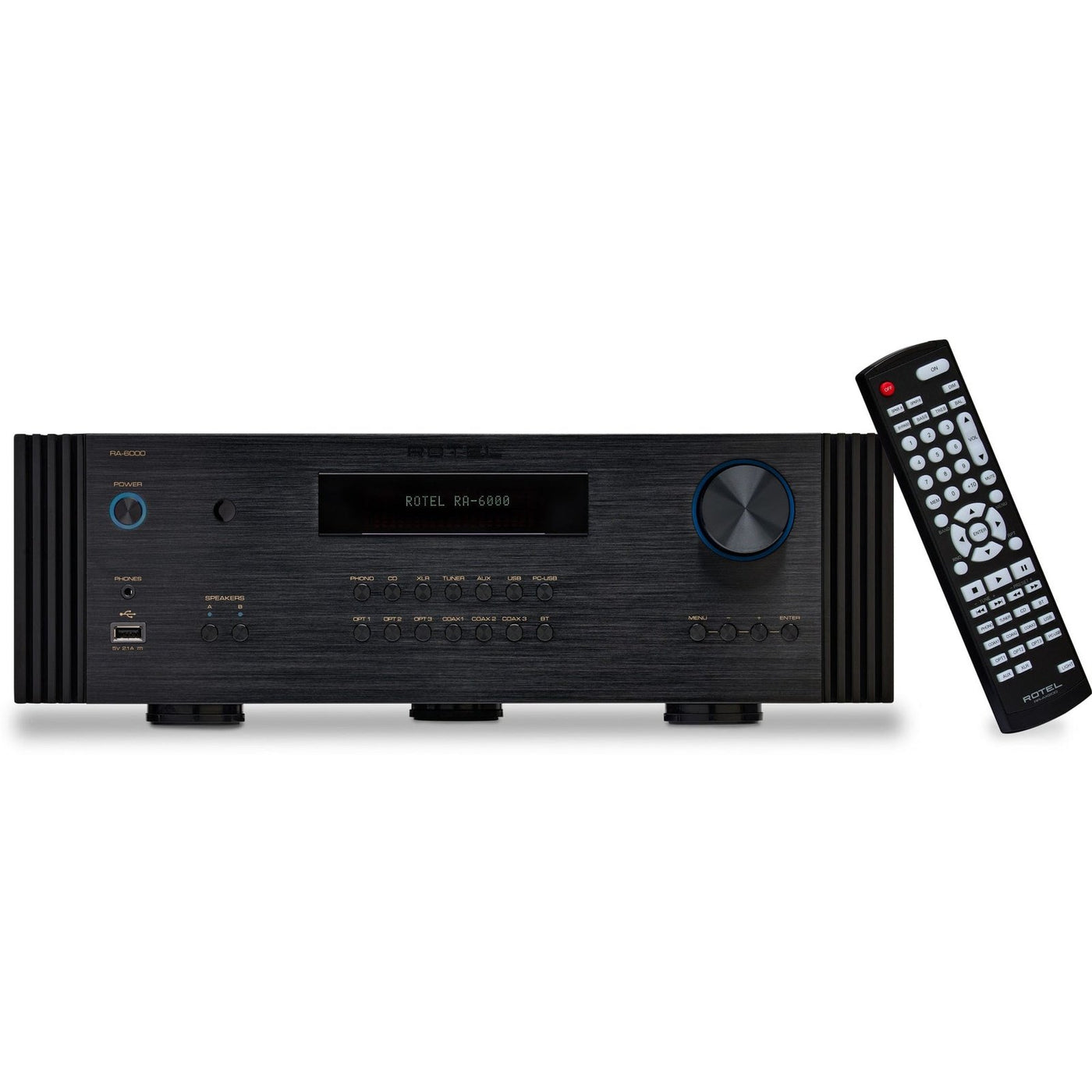

Rotel Diamond Series RA-6000 Integrated Amplifier

Rotel  /  Integrated Amplifiers

ROT-RA6000-XX-AMP-BLK

RRP $6,499.00 $3,249.00 Save 50%
/
Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Orders will usually take between 1-6 days for delivery, depending on your location and shipping method.

If your order has not been delivered within 7 days of shipping we recommend you reach out to us directly to investigate with Australia Post / Courier.

If for any reason you haven't followed up with us within 30 days of shipping, we'll be unable to guarantee your delivery of your item unless it has been returned to sender.

The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.


Certified Roon Tested

Supports MQA and MQA Studio

 2 x 350 Watts of robust
Class AB power, 4 Ohms 		Wireless aptX™ HD and
AAC Bluetooth 		Texas Instruments
premium 32-bit/384kHz
Digital to Analog Converter


  • Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested.  A Moving Magnet Phono stage is also included for vinyl fans.
  • Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation.
  • Ethernet, RS232,12V trigger and external remote input simplify integration with control systems.
  • The RA-6000 is available in both black and silver colours.


Specifications


DIMENSIONS (W × H × D)
431 × 144 × 425mm
17" × 5.7" × 16"

FRONT PANEL HEIGHT
3U / 132.6mm (5.25")

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
500W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
18.81kg (41.47lbs.)

BTU (4 ohms, 1/8th power)
1239 BTU/h

MAXIMUM POWER OUTPUT
350W/Ch (4Ω)

CONTINUOUS POWER OUTPUT
200W/Ch (8Ω)

TOTAL HARMONIC DISTORTION
 (THD)
<0.0075%

FREQUENCY RESPONSE
Line Level Inputs:
10Hz - 100kHz, ±0.5dB
Digital Inputs:
10Hz - 90kHz, ±2dB
Phono Input:
20Hz - 20kHz, ±0.5dB

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 103dB
Digital Inputs: 102dB
Phono Input: 80dB

INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
600

INPUT SENSITIVITY
Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Digital Inputs: 0 dBfs
Phono Input (MM): 5.2mV
INPUT IMPEDANCE
Line Level Inputs (RCA): 5.6kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ

INPUT OVERLOAD
Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 4.5V
Phono Input: 52mV

PREOUT LEVEL
1.9V
OUTPUT IMPEDANCE
100Ω

COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
