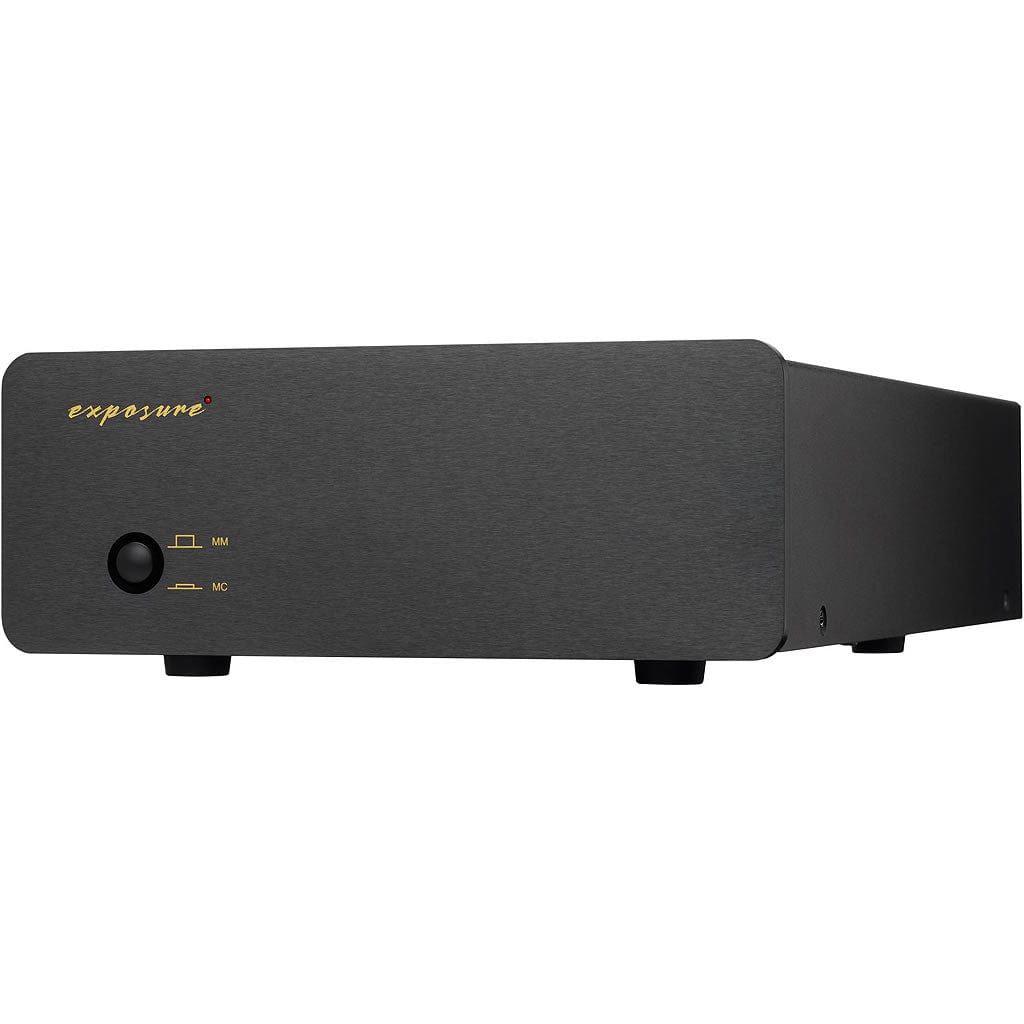

Exposure VXN Phono Stage

Exposure  /  Phono Preamps

RRP  $5,298.00
/
Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Orders will usually take between 1-6 days for delivery, depending on your location and shipping method.

If your order has not been delivered within 7 days of shipping we recommend you reach out to us directly to investigate with Australia Post / Courier.

If for any reason you haven't followed up with us within 30 days of shipping, we'll be unable to guarantee your delivery of your item unless it has been returned to sender.


FEATURES

  • All audio circuits using discrete transistors only - no ICs in the signal path

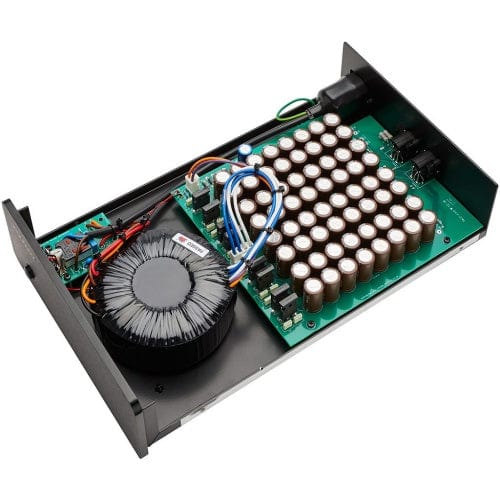

  • Very low noise power supply regulators used with multiple stages of regulation
  • High quality resistors & capacitors used in signal path
  • Very high quality Polypropylene capacitors used in critical areas of the RIAA equalisation

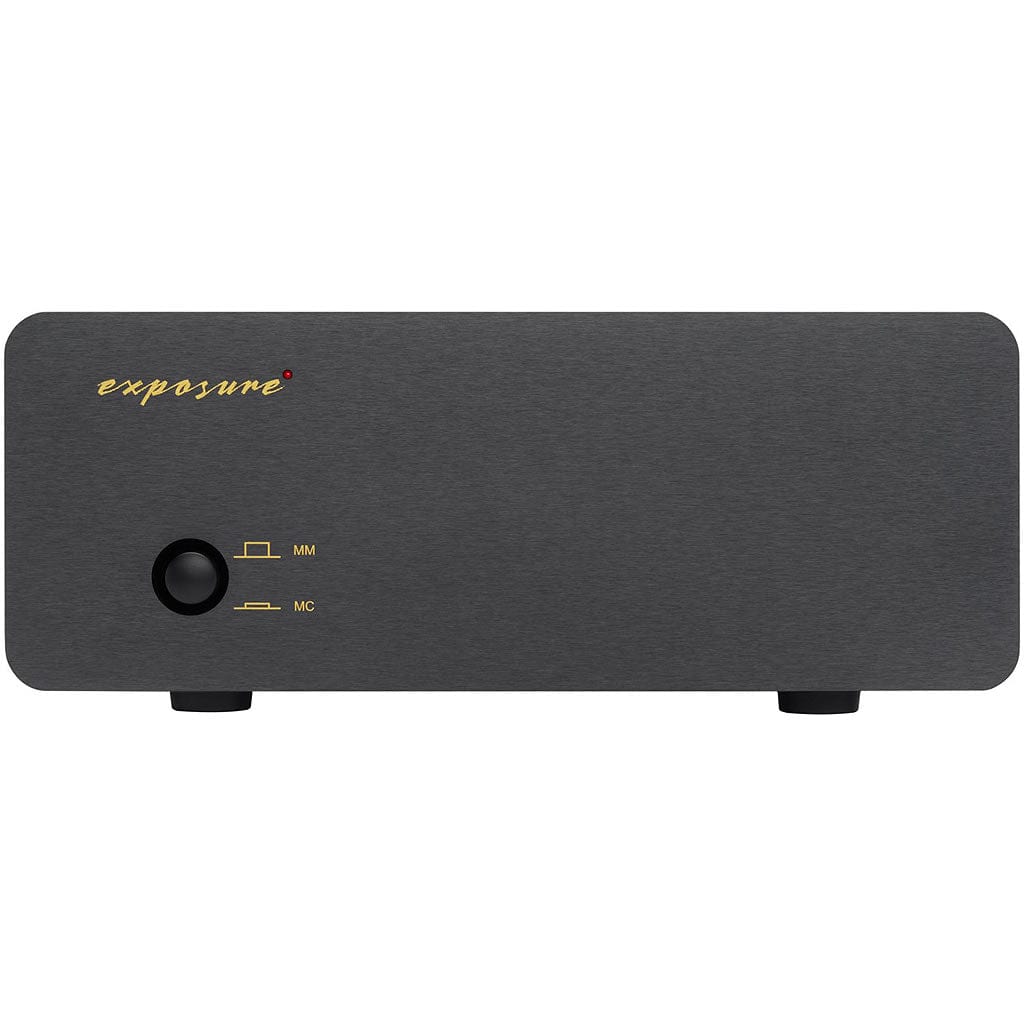

  • Separate MM & MC inputs selectable on the front panel

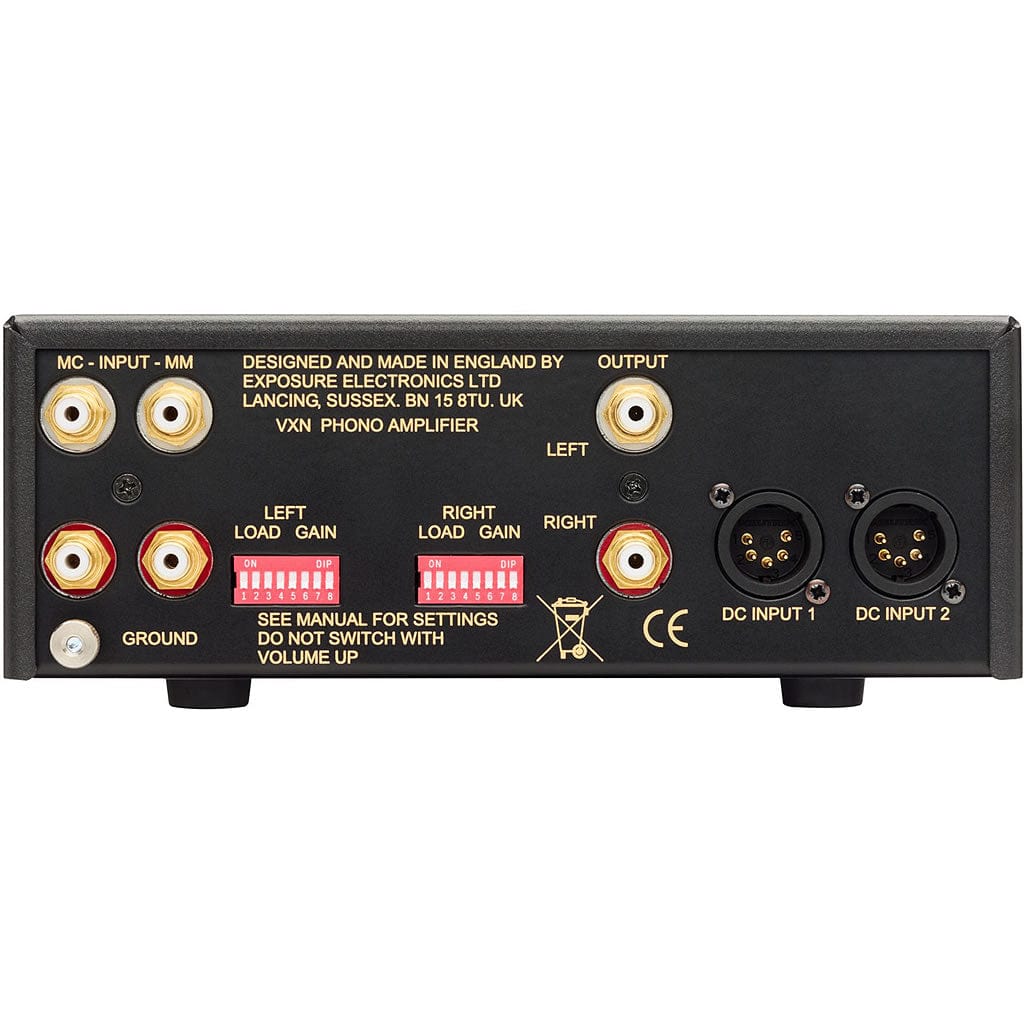

  • Adjustable loading & gain switches on the back panel
  • High quality all aluminium case work and extruded front panel
  • Three year guarantee
  • Available in black only


SPECIFICATIONS

Outputs

  • Nominal output (depends on gain setting) : Maximum Output: 500mV
  • Output Impedance: 50 Ohms
  • THD @ 1 kHz, ref 500mV output: 7.8V @ 1kHz
  • Frequency Response : 30Hz - 20kHz within +/- 0.25dB ref 1kHz with low frequency roll off below 30Hz

Moving Magnet Input

  • Sensitivity : 5mV input for 500mV output, 40dB gain setting
  • Signal to Noise Ratio : ref 1kHz & 500mV out (A weighted) : >82dB

 Moving Coil Input

  • Sensitivity : 500uV input for 500mV output, 60dB gain setting
  • Signal to Noise Ratio : ref 1kHz & 500mV out (A weighted) : >72dB

General

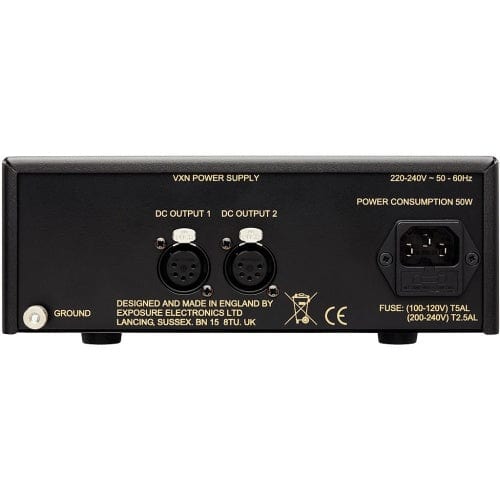

  • For use with VXN Power Supply only Power Consumption : <10W
  • Dimensions (HxWxD) : 89mm x 218mm x 348mm
  • Net Weight : 2kg
  • Gross Weight : 3kg
