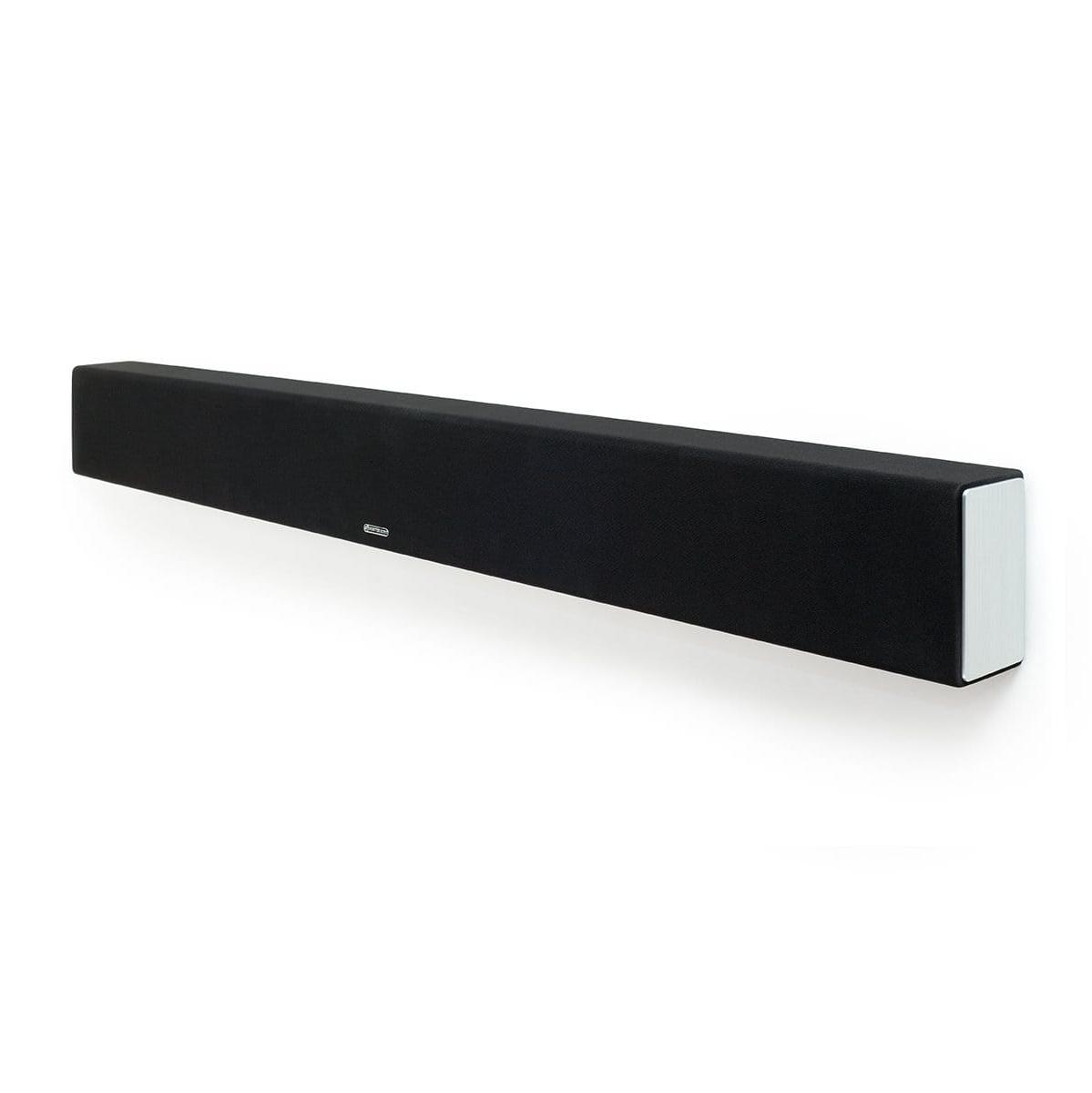

Monitor Audio SB-3 Passive Soundbar
Monitor Audio SB-3 Passive Soundbar
Monitor Audio SB-3 Passive Soundbar
Monitor Audio Monitor Audio SB-3 Passive Soundbar Sound Bars
Monitor Audio SB-3 Passive Soundbar
Monitor Audio SB-3 Passive Soundbar
Monitor Audio SB-3 Passive Soundbar

Monitor Audio SB-3 Passive Soundbar

Monitor Audio  /  Sound Bars

MON-SB3XXX-60-SPK-BLK

RRP $1,449.00 $1,304.00 Save 10%
/
Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Orders will usually take between 1-6 days for delivery, depending on your location and shipping method.

If your order has not been delivered within 7 days of shipping we recommend you reach out to us directly to investigate with Australia Post / Courier.

If for any reason you haven't followed up with us within 30 days of shipping, we'll be unable to guarantee your delivery of your item unless it has been returned to sender.

The SB-3 is custom-built for screen sizes above 60 inch and features three separate driver arrays for left, centre, right channels in a single cabinet.

Twin C-CAM bass drivers, twin ABRs (Auxiliary Bass Radiators) and a single C-CAM tweeter in the centre section to provide the SB-3 with higher acoustic output and power handling for critical centre channel reproduction. This is combined with individual mid-bass, tweeter and sealed ABR drivers for both left and right channels.

In larger rooms the SB-3 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.



Technology

  • Individual C-CAM (Ceramic-Coated Aluminium/Magnesium) bass/mid driver for left and right channels, twin drivers for the centre channel
  • C-CAM gold dome tweeters per channel
  • Individual Auxiliary Bass Reflex (ABR) for left and right channels, twin ABRs for the centre channel
  • Three separate driver arrays for left, centre, right channels in a single cabinet
  • Optional dedicated wall bracket
  • Integrated Silicon feet provide a secure cabinet-top mounting alternative.

Specifications

Frequency Response (-3dB)

All Channels: 80Hz – 30kHz

Sensitivity (1W@1M)

Left and Right Channels: 84dB
Centre Channel: 87dB

Nominal Impedance (ohms)

All Channels: 8

Power Handling Single - R.M.S. (W)

Left and Right Channels: 40
Centre Channel: 80



System Power Handling - R.M.S. (W)

All Channels: 100 (High pass filter set to 100Hz)

Recommended Amp Requirements (W)

All Channels: 30 - 100

Recommended High Pass Crossover Frequency

All Channels: 80 - 120Hz

Maximum SPL (dBA)

104 (108.8 all channels driven)



Bass Alignment

Left and Right Channels: 2 x Auxiliary Bass Reflex (ABR) Loading
Centre Channel: 2 x Auxiliary Bass Reflex (ABR) Loading

Drive Unit Complement

Left and Right Channels: 2 x 4” (100mm) C-CAM cone bass/mid driver, 2 x 1” (25mm) C-CAM gold dome tweeter
Centre Channel: Left and Right Channels: 2 x 4” (100mm) C-CAM cone bass/mid driver, 1 x 1” (25mm) C-CAM gold dome tweeter

Cabinet Dimensions (HxWxD)

145 x 1310 x 89mm

External Dimensions Inc Bracket (HxWxD)

145 x 1310 x 100mm



Weight (Kg)

9.1Kg
