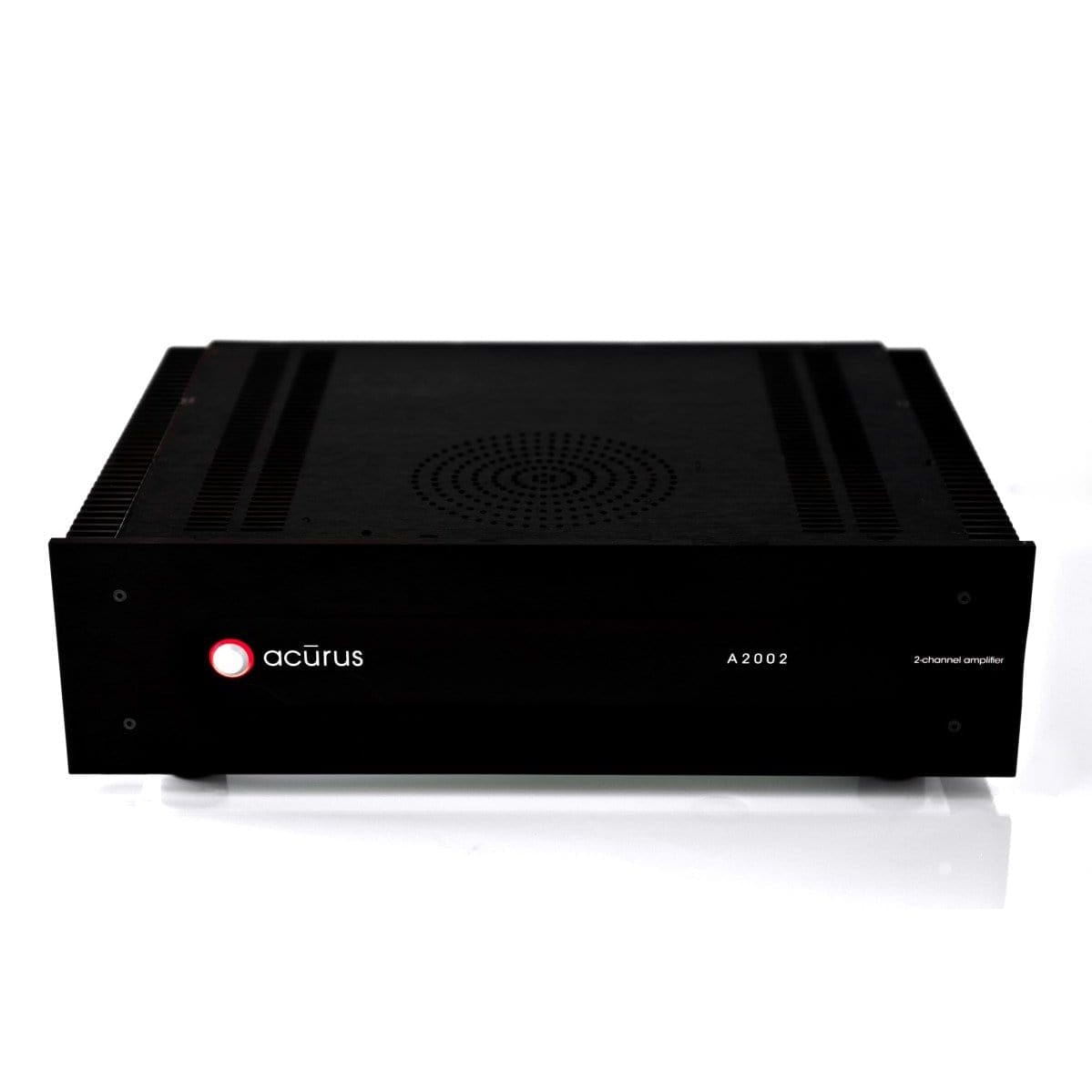

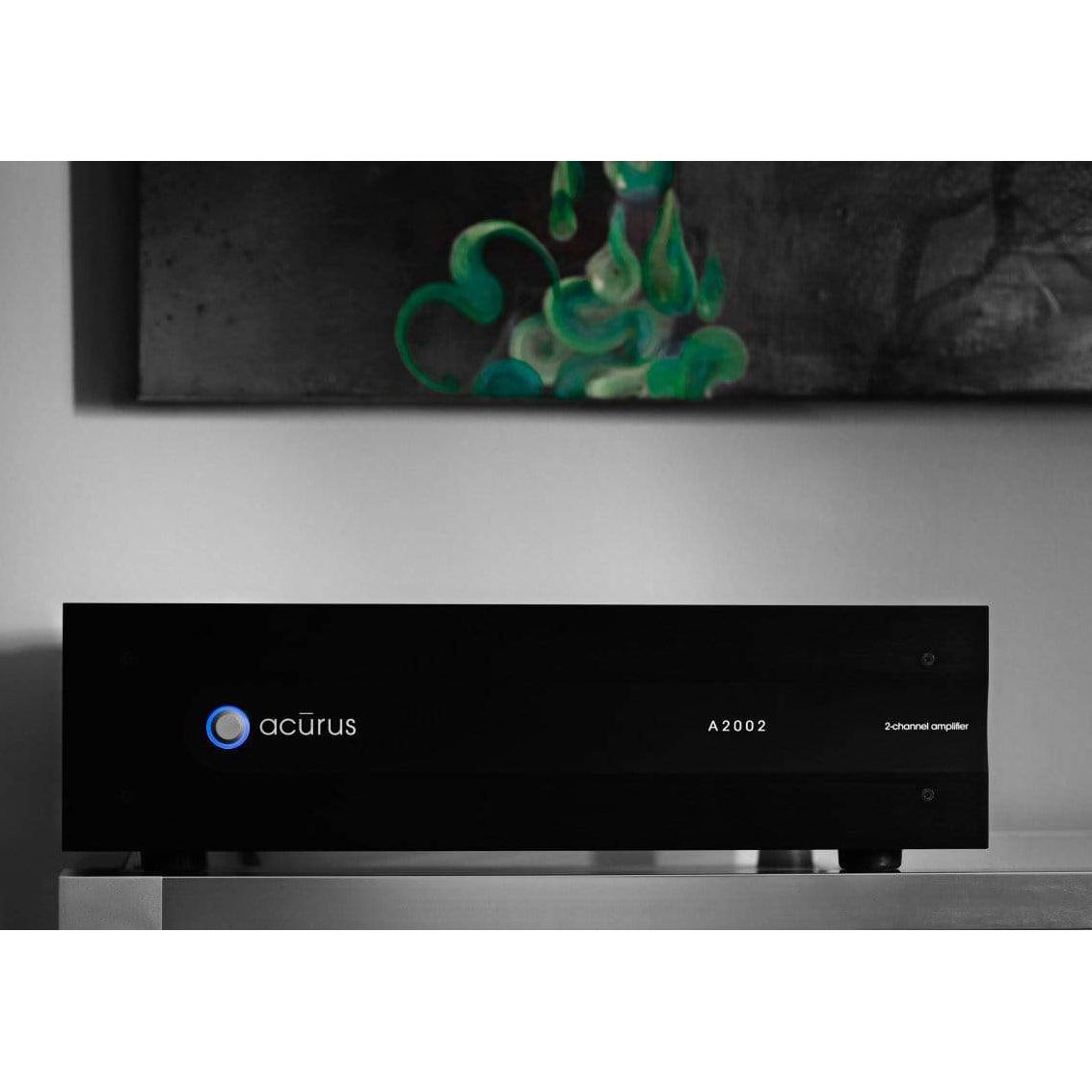

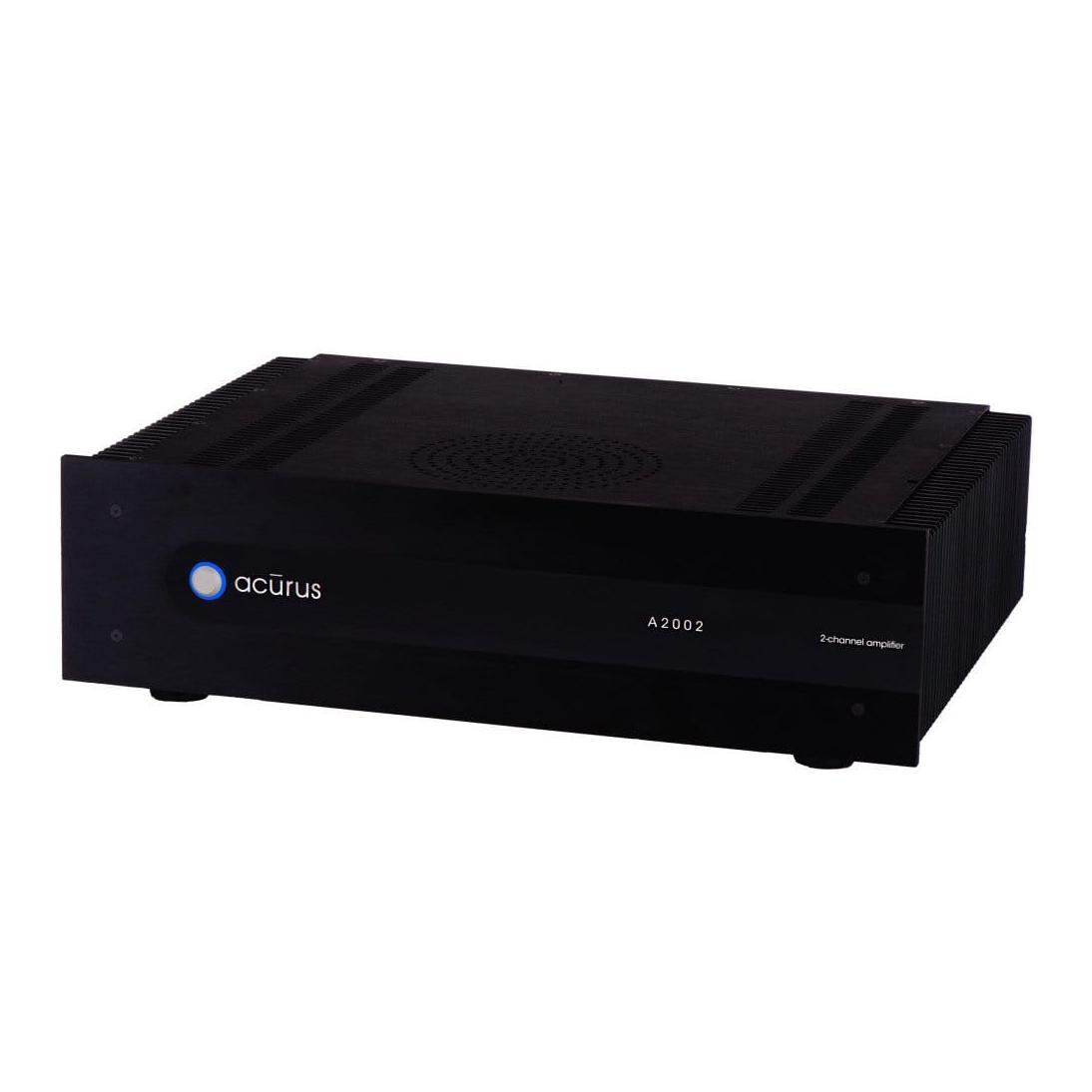

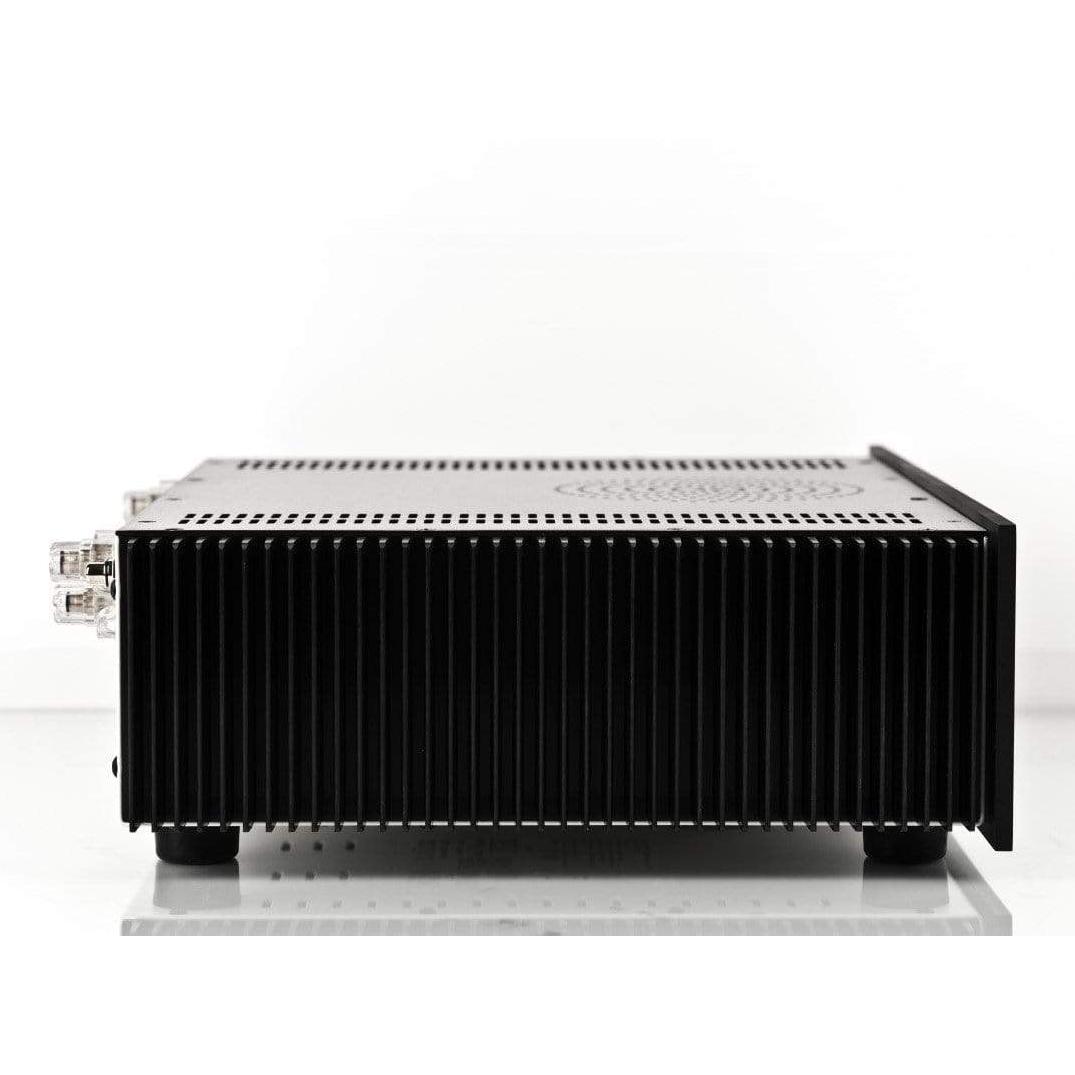

Acurus A2002 2-Channel 200W Power Amplifier

Acurus A2002 2-Channel 200W THX Ultra2® Class AB Power Amplifier with remote trigger, Ethernet/RS232

High-end harmony

The two-channel powerhouse in the Acurus A2000 series is the A2002. This amplifier provides the basis for a high-end stereo setup or a high-power 2-channel zone amplifier for a multi-room system rack.

Solid American engineering and construction guarantee long life and long performance of this phenomenal Class A/B amplifier.

The 2-channel utility player in the Acurus A2000 series is the A2002. This compact yet powerful amplifier provides the basis for a value-priced high-end stereo setup, amplification for a THX Ultra 2 certified theater setup or a powerful 2-channel zone for a multi-room system rack.

An ethernet control and status port is standard on all Acurus products. This smart feature enhances performance, setup and everyday use well beyond the basic 12-Volt trigger found in competitive products. Smart capabilities like this in all Acurus products help ensure the best performance possible.

FEATURES

• High-current output stage
• Fully discrete class AB analog audio circuitry

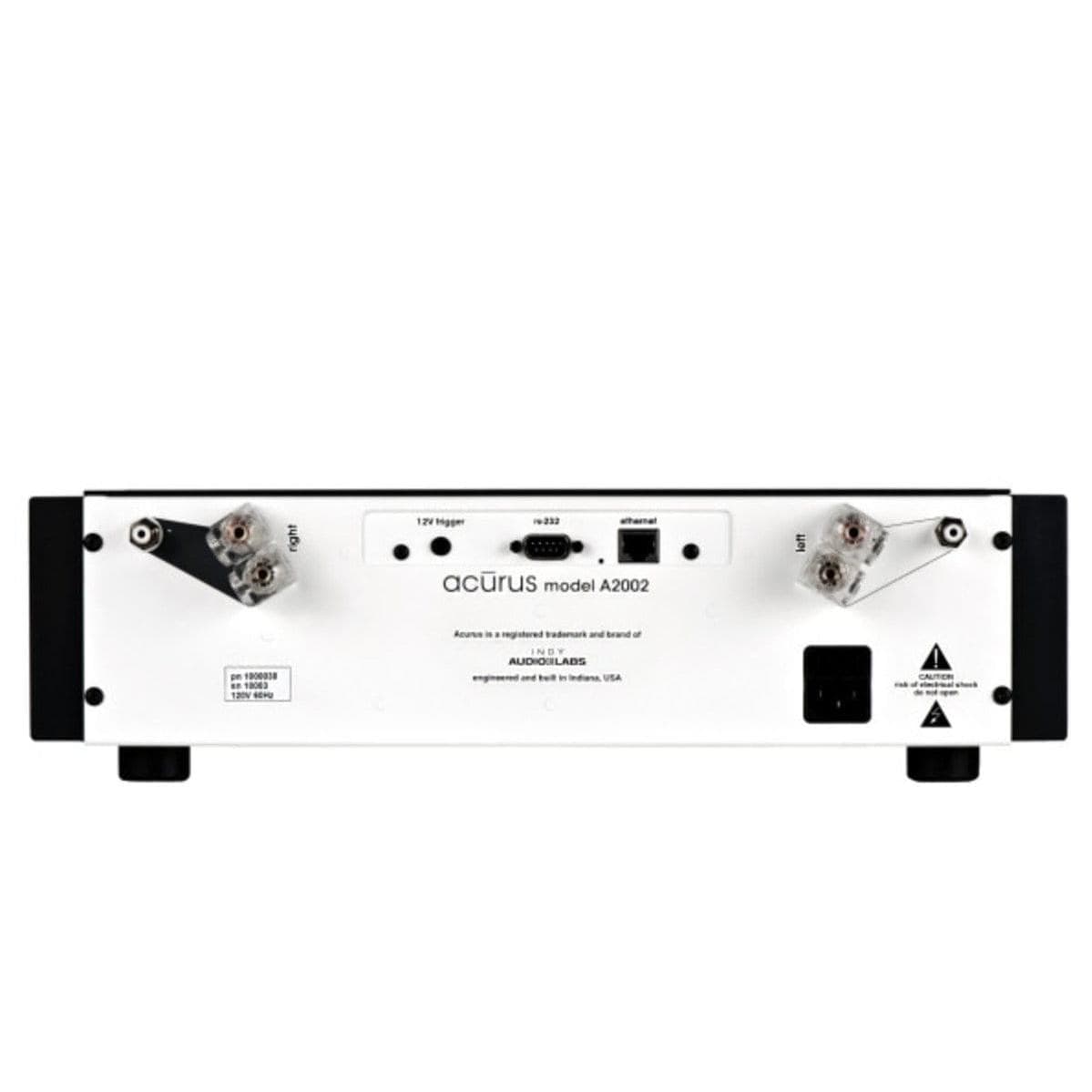

• Ethernet, RS-232, 12V trigger

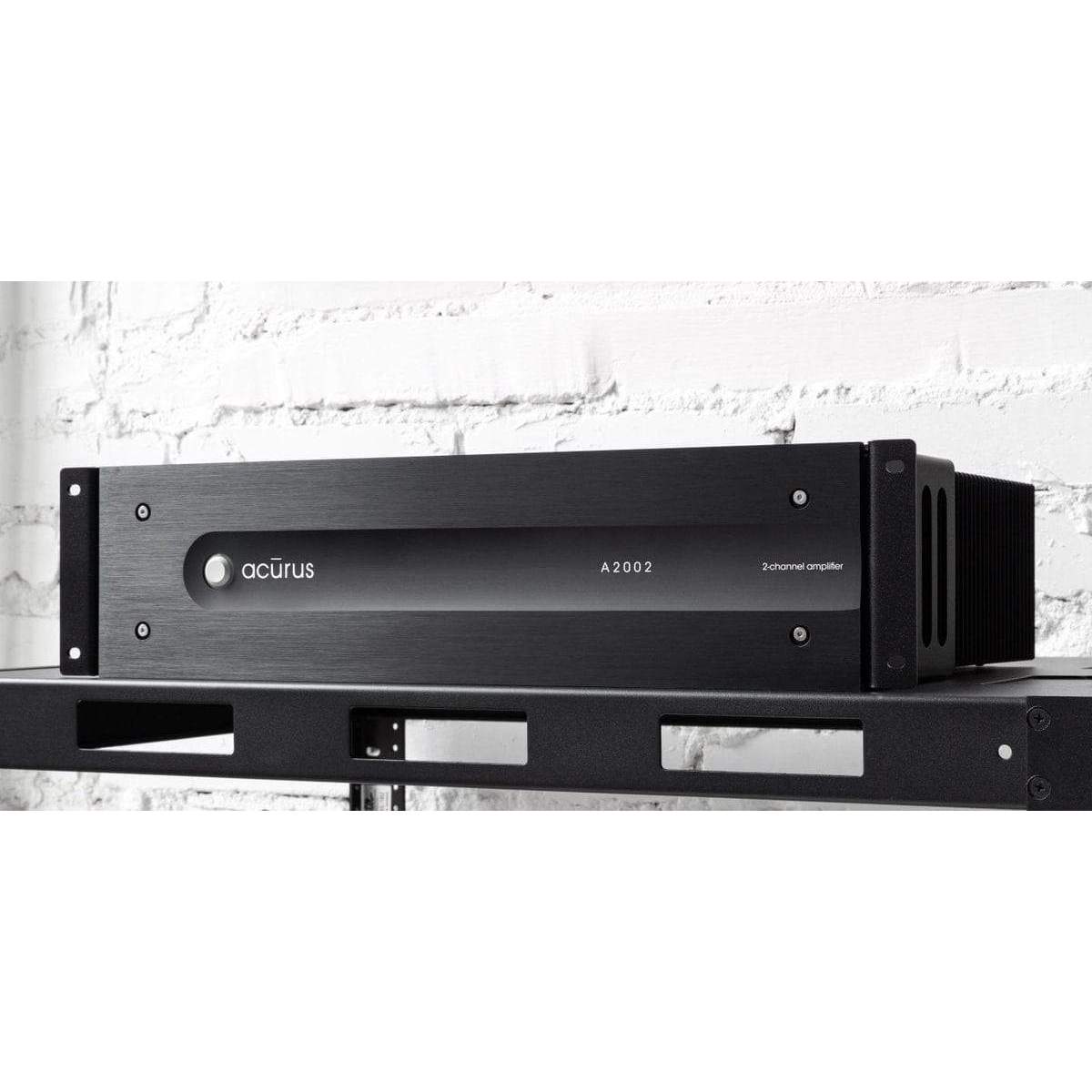

• Rack-mountable chassis
• Mobile device controllable
• Remote monitor-ready

BENEFITS

• Detailed, neutral sound, ideal for music or movies
• Cool-running
• Quick installation and setup
• Readily integrates with popular control systems
• Made in the USA

APPLICATIONS

• High-performance 2-channel audio
• Home theater
• High-power zone amplification
• Bi-amp upgrade for Acurus ARIES

WARRANTY

• 5 years parts and labor

INCLUDED

• User guide
• 14 AWG power cord
• Warranty card

OPTIONAL ACCESSORIES

• Rack ear kit (ARM-1)

Specifications

ELECTRICAL

FREQUENCY RESPONSE

• 20 – 20kHZ ± 0.1 dB

SNR

• >110dB (A-wt)

THD

• < 0.02% (20 – 20kHz)

AUDIO/VIDEO

STEREO ANALOG INPUTS

• 2 x gold-plated RCA L/R unbalanced

DIGITAL INPUTS

• 2 x coax RCA, 2 x optical

MULTI-CHANNEL ANALOG OUTPUTS

• 12 x balanced XLR + 4 x CAB-20 bal. XLR

DIGITAL OUTPUTS

• 1 x coax RCA, 1 x optical

DIGITAL VIDEO INPUTS

• 8 x HDMI 2.0b (2.1 ready), 4k pass-thru

DIGITAL VIDEO OUTPUTS

• 1 x HDMI 2.0b (2.1 ready), 1x HDMI 2.0b

CONTROL

FRONT-PANEL DISPLAY

• 5” LCD touch-panel

SERIAL

• 2 x DB9, 2-way control, 2 x USB programming ports

ETHERNET

• 1 x ethernet, web interface + TCP/IP control

12V TRIGGER AND IR

• 1 x 3.5mm IN, 2 x 3.5mm OUT, IR remote

CHARGING PORT

• 2 x USB 5V, 2A

PHYSICAL

PRODUCT DIMENSIONS

• 3.5” x 17” x 15” (8.9m x 43.2cm x 38.1cm)

PRODUCT WEIGHT

• 23 lbs(10.4 kgs)

CARTON DIMENSIONS

• 18” x 22” x 10” (45.7cm x 55.9cm x 25.4cm)

CARTON WEIGHT

• 27 lbs(12.2 kgs)

FINISH

• black satin anodization, laser-etched logo, white chassis

DECODING AND POST PROCESSING

DOLBY ATMOS NATIVE DECODING

• 15.1

DTS:X NATIVE DECODING

• 11.1

POST PROCESSING

• Dolby Surround Upmixer; DTS Neural:X Upmixer

LOUDSPEAKER ADJUST (I)

• delay, polarity, large/small, crossover

LOUDSPEAKER ADJUST (II)

• PEQ

LOUDSPEAKER ADJUST (III)

• ASPEQT Room Correction System
