| System Format |
Long-throw 12" driver featuring ‘dished’ C-CAM cone. Dual 200 mm ABR (auxiliary bass radiator). Front baffle 36 mm, cabinet 25 mm MDF construction with internal bracing and sealed amplifier compartment |
| Lower Frequency Limit |
-3 dB @ 25 Hz / -10 dB @ 20 Hz (Free Field). Music preset (Default): -3 dB @ 19 Hz / -10 dB @ 16 Hz (In Room). Assignable Low Frequency Limit Protection Filter: -3 dB @ 12 Hz |
| Upper Frequency Limit |
-3 dB @ 150 Hz |
| Drive Unit Complement |
1 x 12" C-CAM subwoofer driver featuring triple suspension and 3" long throw voice coil |
| Linear Driver Excursion |
19 mm Peak to Peak, Total displacement 1.6 Litres |
| Amplifier Output |
600 W |
| Amplifier Classification |
Class D with high current Switch mode power supply (SMPSU) |
| DSP |
50 MIPS DSP Core giving 512 instructions per sample, 138 dB of dynamic range and 56-bit double precision processing, dynamically updated by an up to 50 MHz MCU |
| Digital Conversion |
24 bit/up to 48 kHz ADCs & DACs built into ADAU1701 DSP Core |

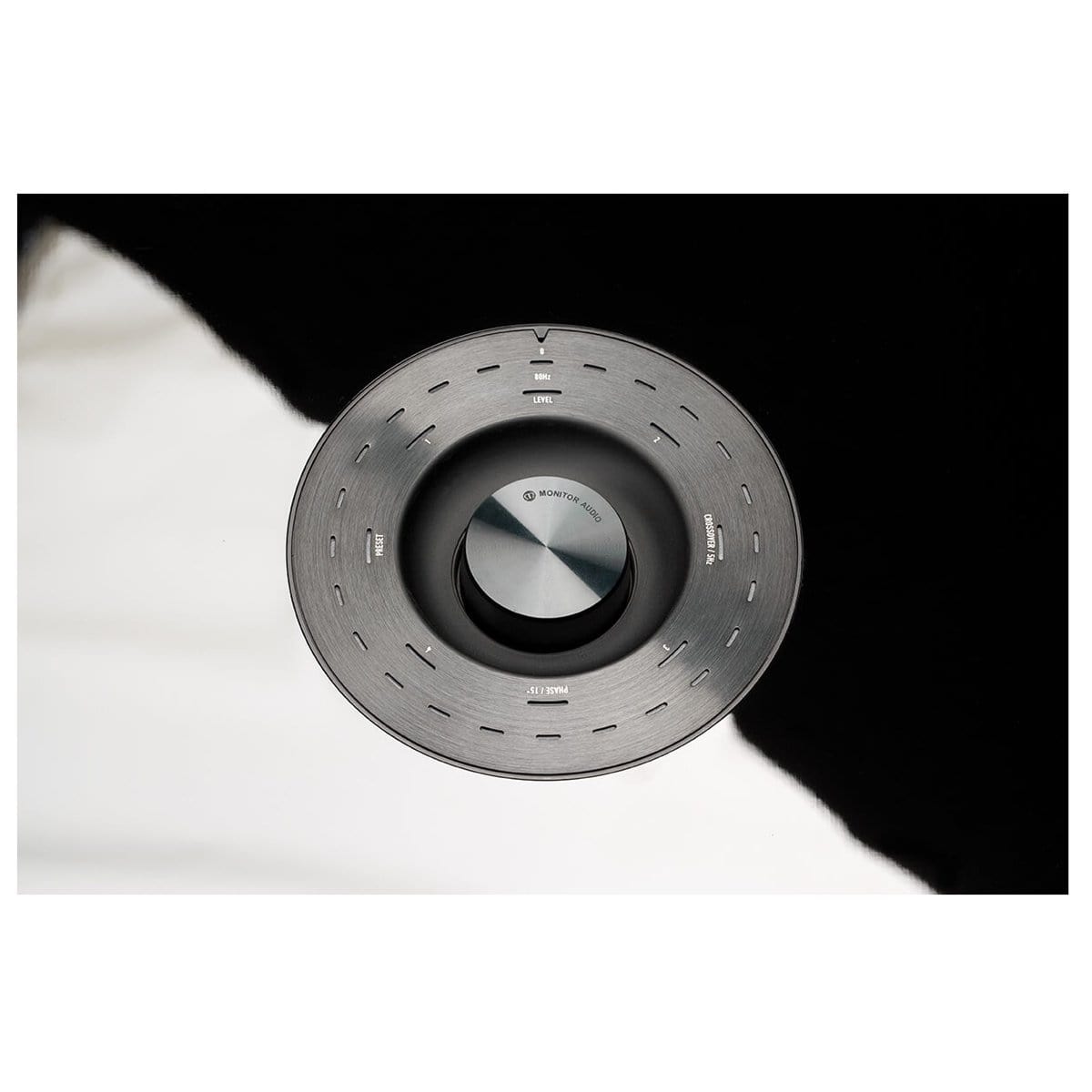

| LED UI Control Panel |
Adjustable brightness 0% - 100%, configurable auto off feature. Quick access to menu items: Trim & Mute, LPF, Phase, Preset Select |
| Global Settings (via SubConnect) |
Display Brightness (0-100%), Dim (to 10% or to Off), Default Preset, Mute Link Outputs, 12 V Trigger Assignment (Power On / Off or Preset select), Input gain (Master -80 to +20 dB, Trim -11 to +11 dB, Mute), Phase (0 – 360 in 15-degree steps), Night Mode Threshold (0 dB to -36 dB), Auto On / Off (Enable Signal Sense, Always On, Time to off 5 – 240 mins) |
| User Presets (via SubConnect) |
4 fully configurable user Presets including, Preset Name, LPF Frequency (5 Hz Steps from 20 – 135 Hz), LPF Slope Order (-12 or -24 dB/Oct), Input (Stereo, LFE or Both), Trim Offset (-6 to +6 dB), EQ mode (Impact, Music, Movie or Default), User EQ (6 adjustable filters applied on top of EQ mode), Room EQ (On / Off), Night Mode (On / Off) |
| User Equalisation (via SubConnect) |
6 fully controllable EQ filters and 4 default filters with gain offset per preset, Voreinstellungen: Flat / Music / Movie / Impact |
| Room Correction EQ |
6 System controlled parametric EQ filters set using advanced detection algorithm. Measurement can be initiated from the control panel or the SubConnect with up to microphone 6 positions (default 2) |
| Night Mode |
Night mode, assignable (On or Off) per Preset with global threshold (0 dB to -36 dB). Introduces dynamic range reduction lowering the level of loud sections |
| Phase Control |
0 – 360 degrees Increments of 15 degrees with a pure invert at 180 degrees |
| Low Pass Filter Alignment |
2nd or 4th order (12 or 24 dB/Octave), Increments of 5 Hz from 35 Hz to 135 Hz |
| Auto Sensing Input Requirements |
Line Level >1mV on unbalanced and balanced inputs. Auto Standby feature, adjustable between 5 – 240 minutes in increments of 5 minutes |
| Digital Volume Level |
-11 to +11 dB in 1 dB increments, via the control panel. -80 to +20 in 1 dB increments, via SubConnect application |
| IR Remote Control Code |
Supplied IR remote. Front facing IR receiver with red LED indication |
| SubConnect (PC Application) |
Windows (7 onwards) (32/64 bit) compatible setup application available from the Monitor Audio website. Allows the user to control advanced subwoofer setup features. Settings can be saved while not connected to the subwoofer for off-site setup |
| Audio Input/Outputs |
LFE balanced input (XLR), LFE unbalanced input (RCA), stereo unbalanced inputs (RCA). LFE balanced output (XLR), LFE unbalanced output (RCA), stereo unbalanced outputs (link RCA) |
| Connection |
12 V Trigger in (3.5 mm mono mini-jack, 6 V threshold), assignable to On/Off or Pre-set change, 3.5 mm Microphone input jack (mic supplied), RJ45 connector supporting RS232 (EIA/TIA - 561, Tx Pin 6, Rx Pin 5, Gnd Pin 4), IR repeater – Output (3.5 mm mono mini-jack), USB – Type B, for connecting to SubConnect PC application and Firmware update |
| Electrical Certifications |
CE / CB / ETL / FCC / CCC / ErP (Energy Saving Compliant) |
| Mains Input Voltage |
100 – 120 VAC ~60Hz / 220 – 240 VAC ~50/60 Hz (Manually selected) |
| Power Consumption |
Maximum 600 W, Standby <0.5 W (ErP compliance) |
| Fuse Type |
20 mm T8AL 250 VAC |
| Weight (Unpacked) |
26.98 kg (59 lb 8.3 oz) |
| External Dimensions (Including Amp, Drivers and Terminals (H x W x D)) |
413 x 410 x 433.5 mm (16 1/4 x 16 1/8 x 17 1/16") |
| External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D)) |
445 x 410 x 433.5 mm (17 1/2 x 16 1/8 x 17 1/16") |
| Sold As |
Single Unit |
