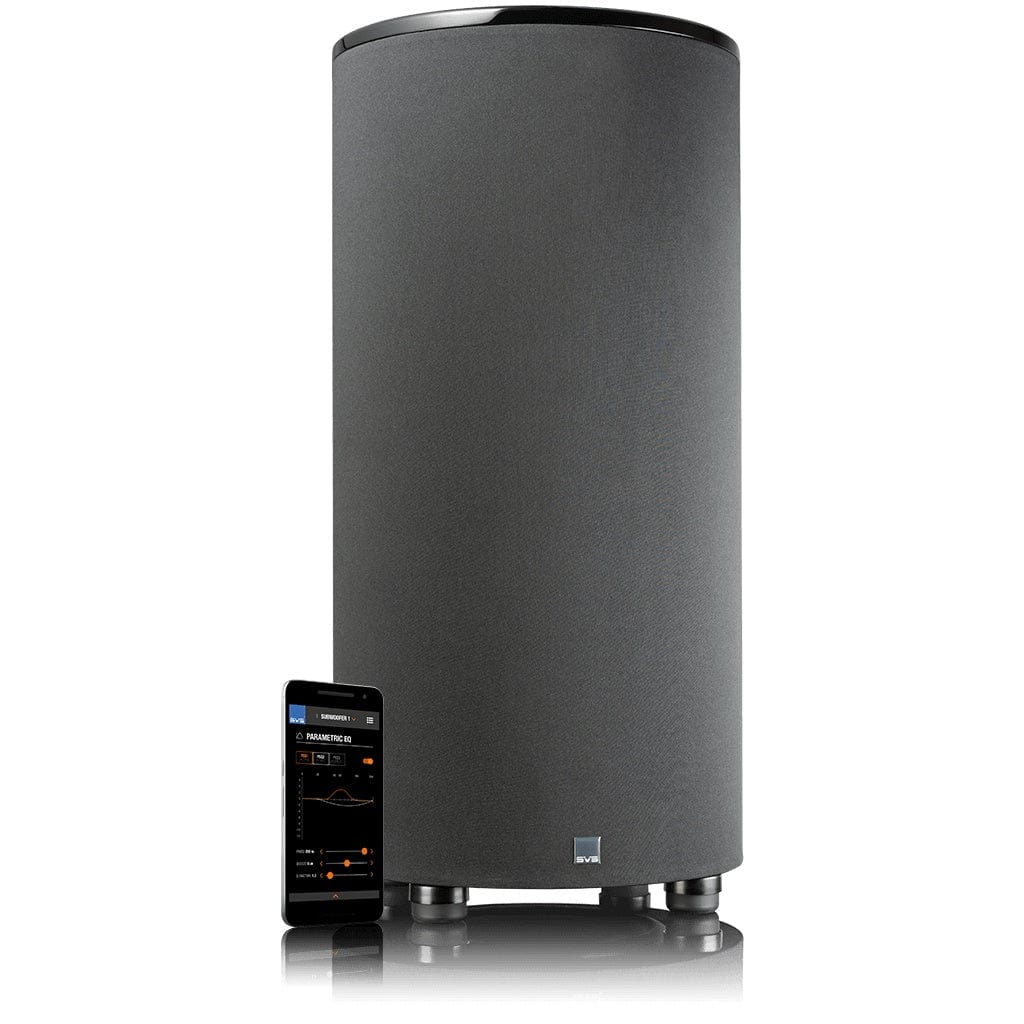

SVS PC4000 Cylinder Subwoofer

PC-4000 Subwoofer

A tower of bass without peer across the world of audio, the PC-4000 is an icon of SVS design innovation standing tall as the most sophisticated cylinder subwoofer SVS has ever developed. Room-energizing output and deep bass extension below the threshold of human hearing with less than half the floorspace required of comparable ported box subwoofers. An effortlessly powerful amplifier and driver combine with advanced DSP technology for a level of performance and user control not seen at this price before. The PC-4000 also comes standard with the SoundPath Subwoofer Isolation System for cleaner sounding bass with increased definition and more punch without room rattle and reduced bass bleed to the rest of the house.

With a footprint measuring just 16” in diameter, the PC-4000 is the pinnacle of SVS’ iconic cylinder subwoofer designs, achieving unparalleled low frequency output and deep bass extension down to 15 Hz. The unique form factor uses vertical height to add cabinet volume while a high-excursion, down-firing 13.5-inch driver and 1,200 watts RMS, 4,000+ watts peak power amplifier delivers concert and cinematic level bass with pinpoint control and accuracy to amaze serious home theater fans and the most discerning audiophiles.

Specifications

»» Weight: 108.8 lbs (49.4 kg)
»» Dimensions (w/ grill): 50.9” (1292mm) H X 18.8” (478mm) W X 19.2” (487mm) D
»» Amplifier Power: 1,200 watts continuous power / 4,200 watts peak dynamic power

Driver Design:

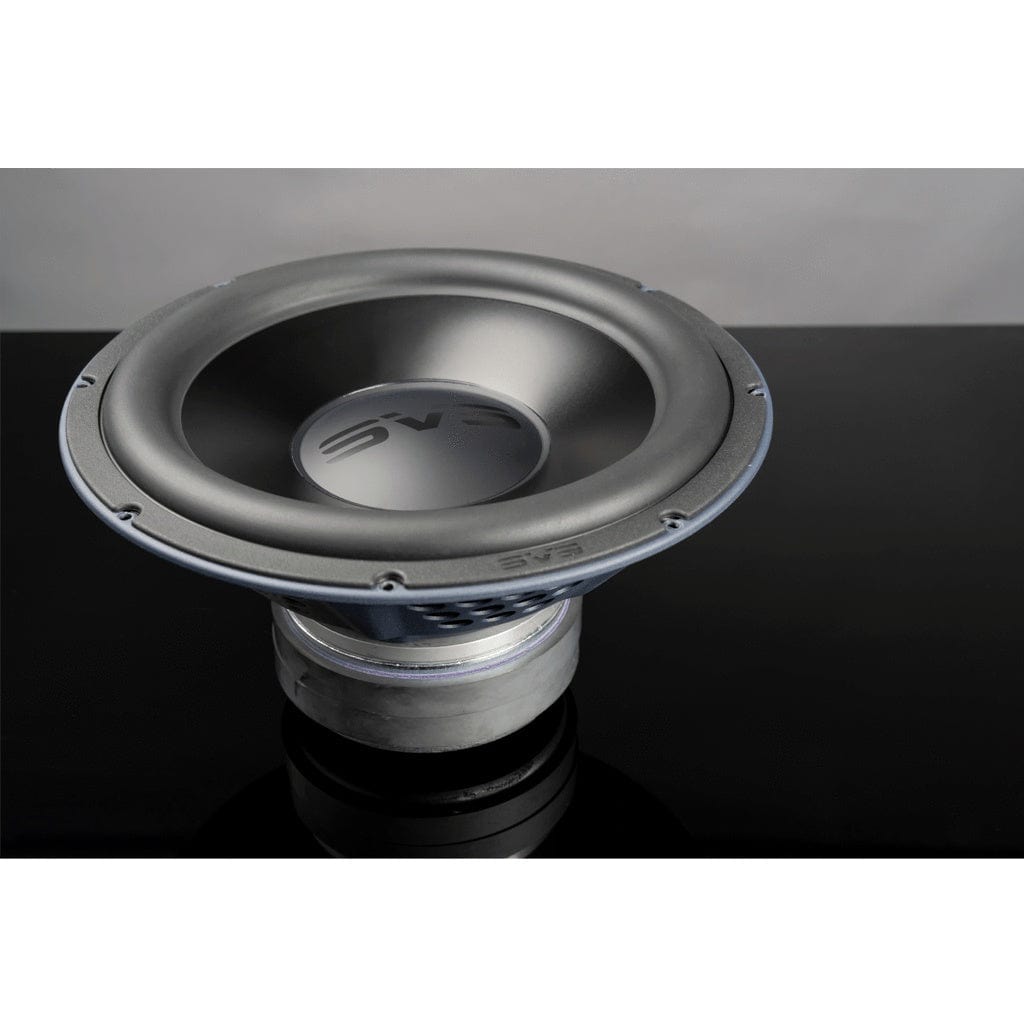

»» Proprietary 13.5” 4000 Series Driver
»» 49.6lb (22.5kg) pound Woofer with 44.3lb (20.1kg) pounds for the motor
»» Underhung 53mm Xmax, 91.6mm Xmech precision aligned excursion

Frequency Response:
»» 17Hz to 200Hz +/-3dB (standard mode)
»» 15Hz to 200Hz +/-3dB (extended mode)
»» 16Hz to 200Hz +/-3dB (sealed mode)
»» Max Low Frequency Output: 133.1dB @ 32Hz 1/8 space 1m
