Name: Rotel Diamond Series RA-6000 Integrated Amplifier
Brand: Rotel
SKU: ROT-RA6000-XX-AMP-BLK
Price: 3249.0 AUD
Availability: InStock
Rating: 4.4 (23 reviews)

Rotel Rotel Diamond Series RA-6000 Integrated Amplifier Integrated Amplifiers

RRP $6,499.00 $3,249.00 Save 50%

Quantity

[{"id":43014850773250,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"ROT-RA6000-XX-AMP-BLK","requires_shipping":true,"taxable":true,"featured_image":{"id":37641791799554,"product_id":7747954573570,"position":1,"created_at":"2022-07-22T10:31:28+10:00","updated_at":"2022-07-22T11:07:07+10:00","alt":"Rotel Rotel Diamond Series RA-6000 Integrated Amplifier Integrated Amplifiers","width":1599,"height":1599,"src":"\/\/www.customht.com.au\/cdn\/shop\/products\/rotel-integrated-amplifiers-37641771811074.jpg?v=1658452027","variant_ids":[43014850773250]},"available":true,"name":"Rotel Diamond Series RA-6000 Integrated Amplifier - Black","public_title":"Black","options":["Black"],"price":324900,"weight":0,"compare_at_price":649900,"inventory_management":"shopify","barcode":"672563265211","featured_media":{"alt":"Rotel Rotel Diamond Series RA-6000 Integrated Amplifier Integrated Amplifiers","id":30219902386434,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1599,"width":1599,"src":"\/\/www.customht.com.au\/cdn\/shop\/products\/rotel-integrated-amplifiers-37641771811074.jpg?v=1658452027"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43014850806018,"title":"Silver","option1":"Silver","option2":null,"option3":null,"sku":"ROT-RA6000-XX-AMP-SIL","requires_shipping":true,"taxable":true,"featured_image":{"id":37641791930626,"product_id":7747954573570,"position":2,"created_at":"2022-07-22T10:31:31+10:00","updated_at":"2022-07-22T11:07:09+10:00","alt":"Rotel Rotel Diamond Series RA-6000 Integrated Amplifier Integrated Amplifiers","width":1599,"height":1599,"src":"\/\/www.customht.com.au\/cdn\/shop\/products\/rotel-integrated-amplifiers-37641771647234.jpg?v=1658452029","variant_ids":[43014850806018]},"available":true,"name":"Rotel Diamond Series RA-6000 Integrated Amplifier - Silver","public_title":"Silver","options":["Silver"],"price":324900,"weight":0,"compare_at_price":649900,"inventory_management":"shopify","barcode":"672563765216","featured_media":{"alt":"Rotel Rotel Diamond Series RA-6000 Integrated Amplifier Integrated Amplifiers","id":30219902517506,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1599,"width":1599,"src":"\/\/www.customht.com.au\/cdn\/shop\/products\/rotel-integrated-amplifiers-37641771647234.jpg?v=1658452029"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Buy now, pay later with:

Free Delivery Australia Wide

Local Australian Warranty

1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Orders will usually take between 1-6 days for delivery, depending on your location and shipping method.

If your order has not been delivered within 7 days of shipping we recommend you reach out to us directly to investigate with Australia Post / Courier.

If for any reason you haven't followed up with us within 30 days of shipping, we'll be unable to guarantee your delivery of your item unless it has been returned to sender.

The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.


Certified Roon Tested	Supports MQA and MQA Studio	2 x 350 Watts of robust Class AB power, 4 Ohms	Wireless aptX™ HD and AAC Bluetooth	Texas Instruments premium 32-bit/384kHz Digital to Analog Converter

Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested. A Moving Magnet Phono stage is also included for vinyl fans.

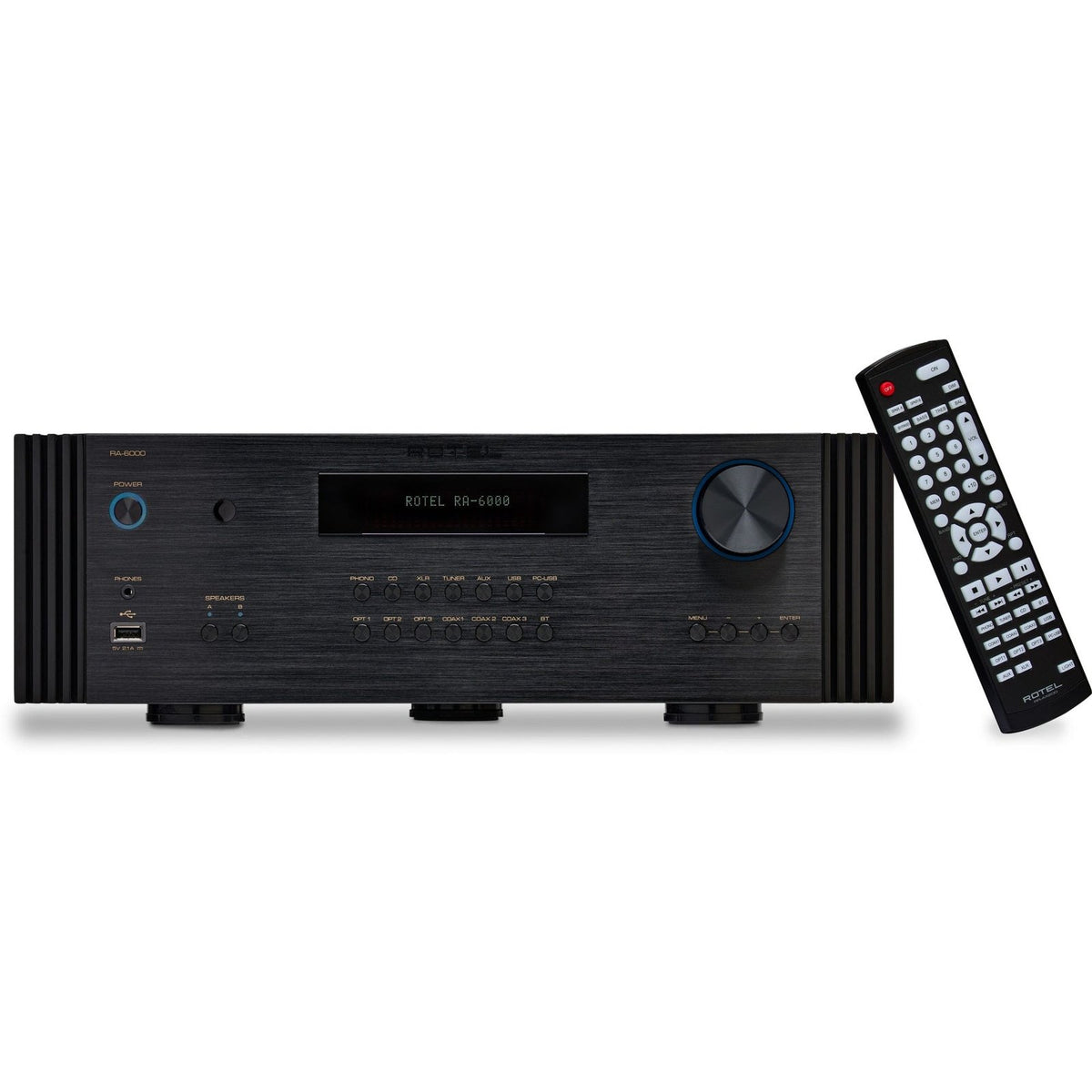

Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation.
Ethernet, RS232,12V trigger and external remote input simplify integration with control systems.
The RA-6000 is available in both black and silver colours.

Specifications

DIMENSIONS (W × H × D)

431 × 144 × 425mm
17" × 5.7" × 16"

FRONT PANEL HEIGHT

3U / 132.6mm (5.25")

POWER REQUIREMENTS

120V, 60Hz

POWER CONSUMPTION

500W

STANDBY POWER CONSUMPTION

<0.5W

NET WEIGHT

18.81kg (41.47lbs.)

BTU (4 ohms, 1/8th power)

1239 BTU/h

MAXIMUM POWER OUTPUT

350W/Ch (4Ω)

CONTINUOUS POWER OUTPUT

200W/Ch (8Ω)

TOTAL HARMONIC DISTORTION

(THD)

<0.0075%

FREQUENCY RESPONSE

Line Level Inputs:

10Hz - 100kHz, ±0.5dB

Digital Inputs:

10Hz - 90kHz, ±2dB

Phono Input:

20Hz - 20kHz, ±0.5dB

S/N RATIO (IHF "A" Weighted)

Line Level Inputs: 103dB

Digital Inputs: 102dB

Phono Input: 80dB

INTERMODULATION DISTORTION

(60Hz:7kHz, 4:1)

<0.03%

DAMPING FACTOR

600

INPUT SENSITIVITY

Line Level Inputs (RCA): 340mV

Line Level Inputs (XLR): 540mV

Digital Inputs: 0 dBfs

Phono Input (MM): 5.2mV

INPUT IMPEDANCE

Line Level Inputs (RCA): 5.6kΩ

Line Level Inputs (XLR): 100kΩ

Digital Inputs: 75Ω

Phono Input (MM): 47kΩ

INPUT OVERLOAD

Line Level Inputs (RCA): 3.5V

Line Level Inputs (XLR): 4.5V

Phono Input: 52mV

PREOUT LEVEL

1.9V

OUTPUT IMPEDANCE

100Ω

COAX/OPTICAL DIGITAL INPUT SIGNALS

LPCM (Up to 24-bit/192kHz)

PC-USB

USB Audio Class 2.0 (up to 32-bit/384kHz)*

*Driver installation required

MQA and MQA Studio (up to 24-bit/384kHz )

Roon Tested
